Rear Combination Light Assembly -- Installation |
- HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
| 1. INSTALL REAR LIGHT ASSEMBLY LH |
Install a new gasket.

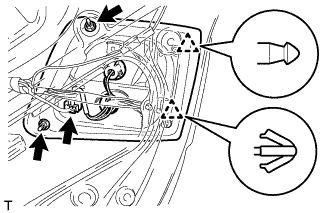

Attach the 2 clips to install the light.
 |
Install the 2 nuts.
Connect the connector.
| 2. INSTALL BACK DOOR TRIM BOARD ASSEMBLY |
Install the trim board and attach the 16 clips.
| 3. INSTALL REAR COMBINATION LIGHT ASSEMBLY LH |
Install a new gasket.

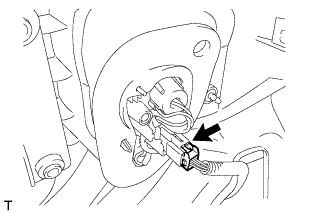

Connect the connector.
 |

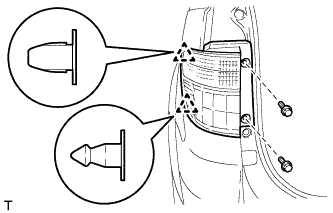

Attach the 2 clips to install the light.
 |
Install the 2 bolts.
