Rear Combination Light Assembly Reassembly
INSTALL BACK-UP LIGHT BULB
INSTALL TAILLIGHT BULB
INSTALL REAR TURN SIGNAL LIGHT BULB
INSTALL TAIL AND STOP LIGHT BULB
Rear Combination Light Assembly -- Reassembly |
- HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

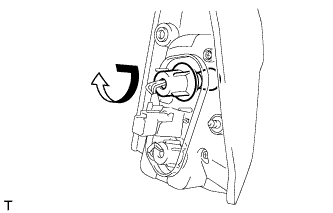

| 1. INSTALL BACK-UP LIGHT BULB |
Turn the bulb in the direction indicated by the arrow to install it.

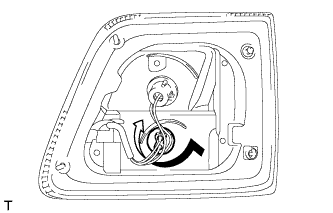

| 2. INSTALL TAILLIGHT BULB |
Turn the bulb in the direction indicated by the arrow to install it.
| 3. INSTALL REAR TURN SIGNAL LIGHT BULB |
Turn the bulb in the direction indicated by the arrow to install it.
| 4. INSTALL TAIL AND STOP LIGHT BULB |
Turn the bulb in the direction indicated by the arrow to install it.
