Transmitter Battery Installation

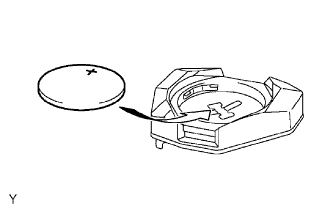

Install a battery (lithium battery: CR2016) with the positive (+) side facing up, as shown in the illustration.

NOTICE:

1. When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the door control transmitter module set from being damaged.

2. Be sure that the positive (+) and negative (-) side of the transmitter battery are matched up correctly.

3. Be careful not to bend the transmitter battery electrode during insertion.

4. Keep the transmitter cover interior free of dust and oil.

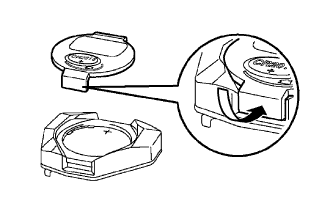

Detach the hook of the transmitter battery's cover and install the cover.

NOTICE:

When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the door control transmitter module set from being damaged.

Install the door control transmitter module.

NOTICE:

When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the door control transmitter module set from being damaged.

Install the transmitter housing cover to the transmitter housing case.

Check that the transmitter's LED illuminates 3 times when the switch is pressed 3 times.

OK:

Transmitter's LED illuminates 3 times when switch is pressed 3 times.
