Front Upper Suspension Arm -- Removal |
| 1. REMOVE FRONT WHEEL |
| 2. INSPECT FRONT SUSPENSION UPPER ARM ASSEMBLY |
Check that there is no looseness on the ball joint by shaking the upper arm up and down by hand.
| 3. DISCONNECT SKID CONTROL SENSOR WIRE (w/ ABS) |
 |

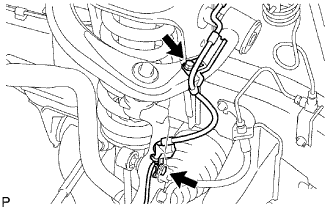

Remove the 2 bolts and disconnect the skid control sensor wire.
| 4. REMOVE FRONT SUSPENSION UPPER ARM ASSEMBLY LH |
 |
Support the lower arm with a jack.
Remove the clip and nut.

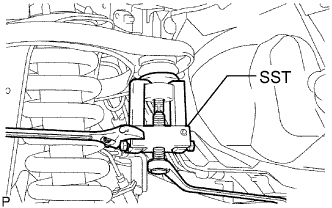

Using SST, disconnect the upper ball joint from the steering knuckle.
- SST
- 09628-62011

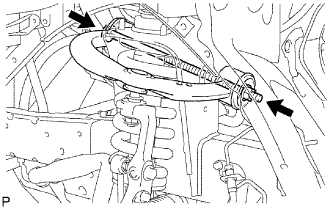

Remove the nut, 2 retainers and bolt.
 |
Remove the upper arm.
