Rear Brake Flexible Hose (W/ Vsc) Removal


  1. DRAIN BRAKE FLUID

  2. REMOVE REAR BRAKE TUBE FLEXIBLE HOSE

  3. REMOVE NO. 6 FLEXIBLE HOSE BRACKET

  4. REMOVE NO. 5 FLEXIBLE HOSE BRACKET

Rear Brake Flexible Hose (W/ Vsc) -- Removal



1. DRAIN BRAKE FLUID
NOTICE:
Wash off brake fluid immediately if it comes in contact with any painted surface.


2. REMOVE REAR BRAKE TUBE FLEXIBLE HOSE


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

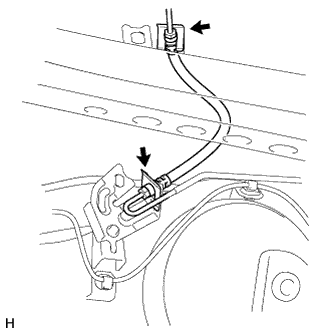

  1. Disconnect each brake tube from the flexible hose with a union nut wrench while holding the flexible hose with a wrench.

  1. Remove the 2 clips.

  1. Remove the flexible hose.



    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Disconnect each brake tube from the flexible hose with a union nut wrench while holding the flexible hose with a wrench.

  1. Remove the 2 clips.

  1. Remove the flexible hose.



3. REMOVE NO. 6 FLEXIBLE HOSE BRACKET


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

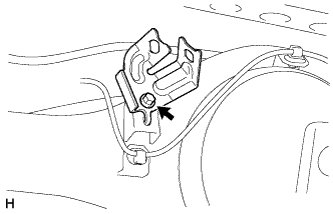

  1. Remove the bolt and bracket from the rear axle housing.



4. REMOVE NO. 5 FLEXIBLE HOSE BRACKET


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

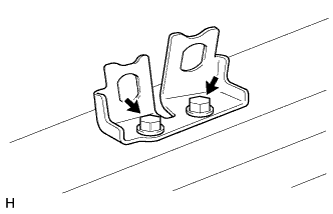

  1. Remove the 2 bolts and bracket from the body.
