Brake Pedal (W/ Vsc) Reassembly

Install the pad to the pedal.

Install the adjuster to the support.

Insert the switch into the adjuster until it slightly touches the pedal.

NOTICE:

Do not depress the pedal.

Turn the switch a quarter turn clockwise.

Torque:

1.5 N*m{15 kgf*cm, 13 in.*lbf}or less

NOTICE:

Do not depress the pedal.

Connect the switch connector to the switch.

Check the switch clearance.

Stop light switch clearance:

1.5 to 2.5 mm (0.0591 to 0.0984 in.)

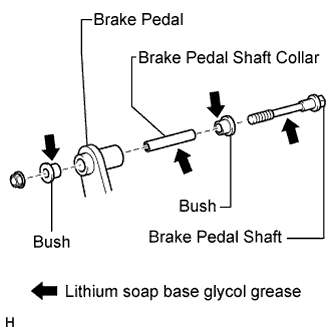

Apply a light coat of lithium soap base glycol grease to the 2 new bushes, the brake pedal shaft collar and shaft.

Install the brake pedal shaft collar and 2 bushes to the pedal.

Install the pedal to the support with the shaft and nut.

Torque:

37 N*m{375 kgf*cm, 27 ft.*lbf}
