Engine Unit Disassembly

Remove the oil filler cap from the head cover.

Remove the ventilation valve from the head cover.

Remove the 19 bolts, 2 nuts, cover and 2 gaskets.

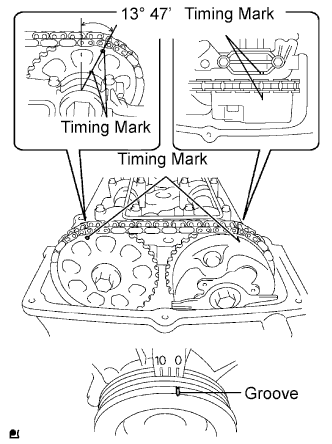

Turn the crankshaft pulley, and align its groove with timing mark 0 of the timing chain cover.

Check that the timing marks of the camshaft timing gear and sprocket are aligned with the timing marks of the No. 1 bearing cap, as shown in the illustration.

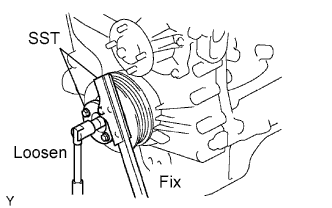

Using SST, hold the crankshaft pulley and remove the pulley set bolt.

SST

09213-54015(91651-60855)
09330-00021

Using the pulley set bolt and SST, remove the pulley.

SST

09950-50013(09951-05010,09952-05010,09953-05010,09954-05021)

Remove the drain plug and gasket.

Remove the 20 bolts and 2 nuts.

Insert the blade of oil pan seal cutter between the oil pans. Cut through the applied sealer and remove the oil pan.

NOTICE:

Be careful not to damage the contact surfaces of the oil pans.

Remove the bolt, 2 nuts, oil strainer and gasket.

Remove the 16 bolts and 2 nuts.

Remove the oil pan by prying between the oil pan and cylinder block with a screwdriver.

HINT:

Tape the screwdriver tip before use.

NOTICE:

Be careful not to damage the contact surfaces of the cylinder block and oil pan.

Remove the O-ring.

Remove the 19 bolts and 2 nuts shown in the illustration.

Remove the timing chain cover by prying between the timing chain cover and cylinder head or cylinder block with a screwdriver.

HINT:

Tape the screwdriver tip before use.

NOTICE:

Be careful not to damage the contact surfaces of the cylinder head, cylinder block and timing chain cover.

Remove the 3 O-rings.

Using a 10 mm socket hexagon wrench, remove the timing gear case plug.

Remove the 8 bolts, water pump and gasket.

Place the timing chain cover on wooden blocks.

Using a screwdriver with its tip taped, pry out the oil seal.

Using SST and a hammer, tap in a new oil seal until its surface is flush with the timing chain cover edge.

SST

09223-75010
09950-70010(09951-07150)

NOTICE:

1. Keep the lip free from foreign matter.

2. Do not tap the oil seal at an angle.


HINT:

When installing the crankshaft pulley, check the shape of the pulley. The correct pulley has a groove (Toyota Fortuner RM000000YMX00AX_01_0070.html).

Apply a light coat of MP grease to the lip of the oil seal.

Using a 27 mm socket wrench, remove the plug and gasket.

Remove the valve spring and relief valve.

Remove the 2 bolts, timing chain guide and O-ring.

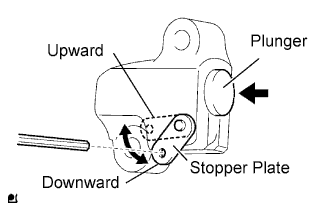

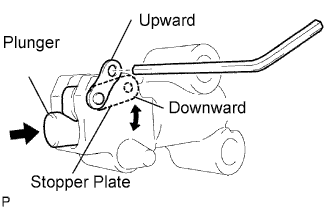

Move the stopper plate upward to release the lock, and push the plunger deep into the tensioner.

Move the stopper plate downward to set the lock, and insert a hexagon wrench into the stopper plate's hole.

Remove the bolt, nut, chain tensioner and gasket.

Remove the bolt and tensioner slipper.

Remove the bolt, nut and vibration damper.

Remove the crankshaft timing sprocket from the crankshaft.

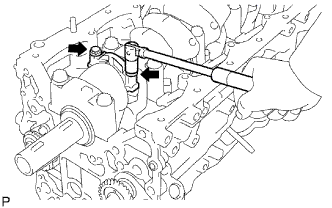

Uniformly loosen the 21 bearing cap bolts in several passes in the order shown in the illustration. Then remove the 21 bearing cap bolts and 20 washers.

Remove the 9 bearing caps, oil delivery pipe, O-ring and 2 camshafts.

NOTICE:

1. Place the camshaft on a flat surface, maintain this position and loosen the bolts uniformly.

2. Do not pry the camshaft with a tool by applying excessive force to it.

3. Do not damage the reception part of the camshaft on the cylinder head side.

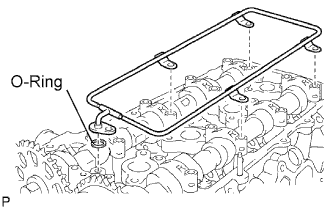

Remove the oil delivery pipe from the bearing caps and then remove the O-ring.

Remove the 9 bearing caps.

Remove the 2 camshafts.

Fix the camshaft in a vise, and then remove the sprocket bolt and camshaft timing sprocket.

NOTICE:

Be careful not to damage the camshaft.

Remove the flange bolt of the camshaft timing gear.

NOTICE:

1. Be sure not to remove the other 3 bolts.

2. If planning to reuse the gear, be sure to release the straight pin lock before installing the gear.

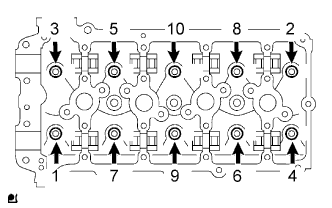

Using a 10 mm bi-hexagon wrench, uniformly loosen the 10 bolts in the sequence shown in the illustration. Remove the 10 bolts and plate washers.

NOTICE:

1. Be careful not to drop washers into the cylinder head.

2. Head warpage or cracking could result from removing bolts in an incorrect order.


Remove the cylinder head and gasket.

Move the stopper plate downward to release the lock, and push the plunger deep into the tensioner.

Move the stopper plate upward to set the lock, and insert a hexagon wrench into the stopper plate's hole.

Remove the bolt and chain vibration damper.

Remove the 2 bolts and chain vibration damper.

Remove the hexagon wrench from the tensioner.

Remove the nut and chain tensioner.

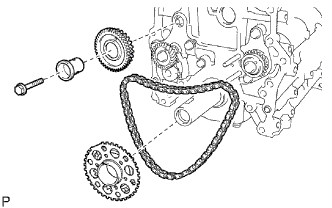

Remove the bolt, balance shaft drive gear shaft and balance shaft drive gear.

Remove the No. 2 crankshaft timing sprocket and chain.

Remove the 2 bolts and No. 4 vibration damper.

Remove the 2 pulley set keys from the crankshaft.

Using SST, remove the oil filter.

SST

09228-07501

Using a 27 mm socket wrench, remove the oil filter union.

Remove the 2 screw plugs and 2 gaskets from the oil filter bracket.

Remove the 2 bolts, nut and oil filter bracket.

Remove the gasket and O-ring.

Using a 14 mm hexagon wrench, remove the oil filter bracket union.

Remove the 6 bolts.

Using a screwdriver with its tip taped, pry out the oil seal retainer.

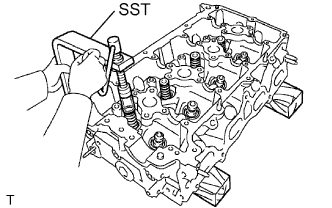

Using SST and wooden blocks, compress the compression spring and remove the 2 valve retainer locks.

SST

09202-70020(09202-00010)

Remove the retainer, compression spring, valve, valve spring and spring seat.

HINT:

Each intake valve must be reinstalled to its original location.

Using SST and wooden blocks, compress the compression spring and remove the 2 valve retainer locks.

Remove the retainer, compression spring, valve, valve spring and spring seat.

HINT:

Each exhaust valve must be reinstalled to its original location.

Using needle-nose pliers, remove the oil seal.

Using an 8 mm hexagon wrench, remove the screw plug.

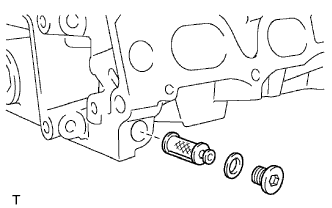

Remove the oil control valve filter and gasket.

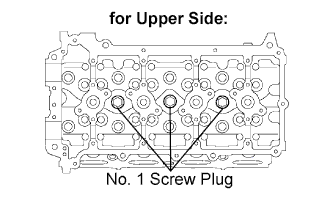

Using a 10 mm hexagon wrench, remove the 3 screw plugs and gasket.

Using a 9 mm hexagon wrench, remove the screw plug and gasket.

Using a dial indicator, measure the thrust clearance while moving the connecting rod back and forth.

Standard thrust clearance:

0.15 to 0.35 mm (0.006 to 0.014 in.)

Maximum thrust clearance:

0.40 mm (0.016 in.)

Remove the 2 connecting rod cap bolts.

Using the 2 removed connecting rod cap bolts, remove the connecting rod cap and lower bearing by wiggling the connecting rod cap right and left.

HINT:

Keep the lower bearing inserted to the connecting rod cap.

Clean the crank pin and bearing.

Check the crank pin and bearing for pitting and scratches.

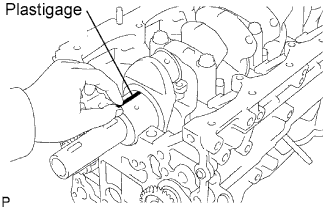

Lay a strip of Plastigage on the crank pin.

Install the connecting rod cap.

NOTICE:

Do not turn the crankshaft.

1. Match the numbered connecting rod cap with the connecting rod.


2. Align the pins of the connecting rod cap with the pin holes of the connecting rod, and install the connecting rod cap.






3. Check that the front mark of the connecting rod cap is facing forward.


Install the connecting rod cap bolts.

HINT:

1. The connecting rod cap bolts are tightened in 2 progressive steps.

2. If any connecting rod cap bolt is broken or deformed, replace it.


1. Apply a light coat of engine oil on the threads and under the heads of the connecting rod cap bolts.


2. Install and alternately tighten the bolts of the connecting rod cap in several passes.


   Torque:

   24.5 N*m{250 kgf*cm, 18 ft.*lbf}

   If a connecting rod cap bolt does not meet the torque specification, replace the cap bolt.





3. Mark the front of the connecting rod cap bolts with paint.


4. Retighten the connecting rod cap bolts by 90° as shown.


5. Check that the painted marks are now at a 90° angle to the front.


Remove the 2 bolts and connecting rod cap.

Measure the Plastigage at its widest point.

Standard oil clearance:

0.039 to 0.066 mm (0.0015 to 0.0026 in.)

HINT:

If replacing a bearing, replace it with one that has the same number as its respective connecting rod cap. Each bearing's standard thickness is indicated by a 4, 5 or 6 mark on its surface.

Standard bearing center wall thickness:

Mark	Specified Condition
4	1.484 to 1.487 mm (0.0584 to 0.0585 in.)
5	1.488 to 1.490 mm (0.0586 to 0.0587 in.)
6	1.491 to 1.493 mm (0.0587 to 0.0588 in.)

Completely remove the Plastigage.

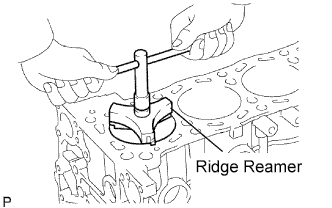

Using a ridge reamer, remove all the carbon from the top of the cylinder.

Push the piston, connecting rod assembly and upper bearing through the top of the cylinder block.

HINT:

1. Keep the bearing, connecting rod and cap together.

2. Arrange the piston and connecting rod assemblies in the correct order.


Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a screwdriver.

Standard thrust clearance:

0.020 to 0.220 mm (0.0008 to 0.0087 in.)

Maximum thrust clearance:

0.30 mm (0.0118 in.)

Thrust washer thickness:

2.440 to 2.490 mm (0.0961 to 0.0980 in.)

Uniformly loosen the 10 bearing cap bolts in several passes in the sequence shown in the illustration.

HINT:

1. Keep the lower bearings and crankshaft bearing caps together.

2. Arrange the thrust washers in the correct order.


Clean each main journal and bearing.

Check each main journal and bearing for pitting and scratches.
If the journal or bearing is damaged, replace the bearings. If necessary, grind or replace the crankshaft.

Place the crankshaft on the cylinder block.

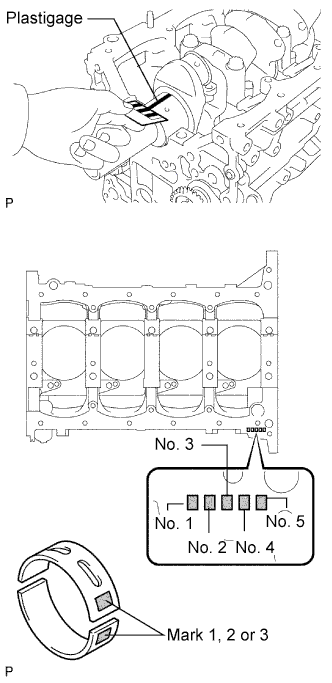

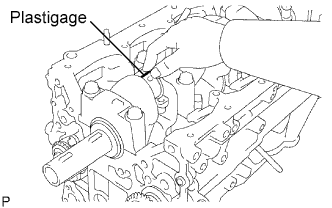

Lay a strip of Plastigage across each journal.

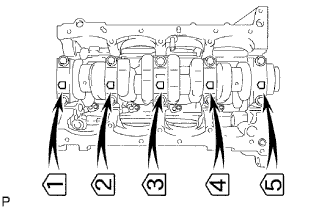

Install the 5 crankshaft bearing caps in their proper locations.

NOTICE:

Do not turn the crankshaft.

Install the crankshaft bearing cap bolts.

HINT:

1. The main bearing cap bolts are tightened in 2 progressive steps.

2. If any of the main bearing cap bolts are broken or deformed, replace as necessary.

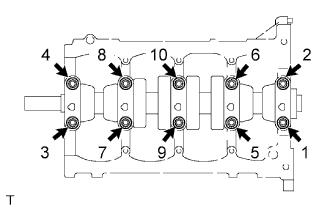

1. Install and uniformly tighten the 10 main bearing cap bolts in the sequence shown in the illustration.


   Torque:

   39 N*m{398 kgf*cm, 29 ft.*lbf}

   If a main bearing cap bolt does not meet the torque specification, replace the main bearing cap bolt.





2. Mark the front of the bearing cap bolts with paint.


3. Retighten the bearing cap bolts by 90° in the numerical order above.


4. Check that the painted marks are now at a 90° angle to the front.


Remove the 5 crankshaft bearing caps, and then remove the 10 bearing cap bolts in the same order in which they were removed above.

Measure the Plastigage at its widest point.

Standard oil clearance:

Item	Specified Condition
No. 3 journal	0.030 to 0.055 mm (0.0012 to 0.0022 in.)
Other journal	0.024 to 0.049 mm (0.0009 to 0.0019 in.)

Maximum oil clearance:

0.10 mm (0.0039 in.)

HINT:

If replacing the cylinder block, the bearing standard clearance will be 0.030 to 0.055 mm (0.0012 to 0.0022 in.).

HINT:

If replacing a bearing, first check the number on the cylinder block for the bearing's respective journal. Then replace the bearing with one that has the same number. Each bearing's standard thickness is indicated by a 1, 2 or 3 mark on its surface.

Cylinder block main journal bore diameter (Reference)::

Mark	Specified Condition
1	64.004 to 64.010 mm (2.5198 to 2.5201 in.)
2	64.011 to 64.016 mm (2.5201 to 2.5203 in.)
3	64.017 to 64.022 mm (2.5203 to 2.5206 in.)

Standard bearing center wall thickness (Reference):

Mark	Specified Condition
1	1.987 to 1.990 mm (0.0782 to 0.0783 in.)
2	1.990 to 1.993 mm (0.0783 to 0.0785 in.)
3	1.993 to 1.996 mm (0.0785 to 0.0786 in.)

Completely remove the Plastigage.

Lift out the crankshaft.

HINT:

Keep the upper crankshaft bearings and upper thrust washers together with the cylinder block.

Check the fit between the piston and piston pin.

1. Try to move the piston back and forth on the piston pin.
   If any movement is felt, replace the piston and pin as a set.


Remove the piston rings.

1. Using a piston ring expander, remove the 2 compression rings.


2. Remove the rail and expander by hand.


   HINT:

   Arrange the piston rings in the correct order.

Disconnect the connecting rod from the piston.

1. Using a small screwdriver, pry off the snap ring from the piston.

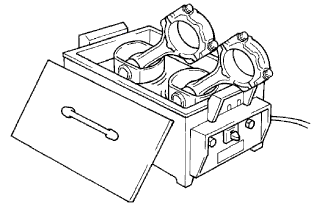

2. Gradually heat the piston to approximately 80 to 90°C (176 to 194°F).






3. Using a brass bar and plastic-faced hammer, lightly tap out the piston pin and remove the connecting rod.


   HINT:

   1. The piston and pin are a matched set.

   2. Arrange the pistons, pins, rings, connecting rods and bearings in the correct order.


Using a 5 mm hexagon wrench, remove the oil nozzle.

Using a dial indicator, measure the thrust clearance while moving the balance shaft back and forth.

Standard thrust clearance:

0.07 to 0.13 mm (0.0027 to 0.0051 in.)

Maximum thrust clearance:

0.20 mm (0.0079 in)

Remove the bolt.

Remove the balance shaft from the cylinder block.

NOTICE:

When removing the balance shaft, make sure to support the balance shaft with both hands and avoid scratching the balance shaft bearing on the cylinder block side.

Mount the head portion of the balance shaft in a vise.

NOTICE:

Be careful not to damage the balance shaft.

Remove the bolt.

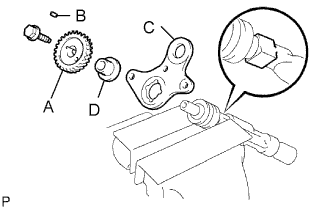

Remove the No. 1 balance shaft driven gear (A), sliding key (B), No. 1 balance shaft thrust washer (C) and balance shaft thrust spacer (D).

Remove the 2 bolts.

Remove the balance shaft from the cylinder block.

NOTICE:

When removing the balance shaft, make sure to support the balance shaft with both hands and avoid scratching the balance shaft bearing on the cylinder block side.

Mount the head portion of the balance shaft in a vise.

NOTICE:

Be careful not to damage the balance shaft.

Remove the bolt.

Remove the No. 2 balance shaft driven gear (A) and No. 2 balance shaft thrust washer (B).
