Camshaft Position Sensor Inspection
INSPECT CAMSHAFT POSITION SENSOR
Camshaft Position Sensor -- Inspection |
| 1. INSPECT CAMSHAFT POSITION SENSOR |

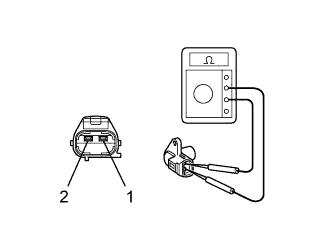

Measure the resistance between terminals 1 and 2.
- Standard resistance:
Temperature
| Specified Condition
|
Cold
| 835 to 1,400 Ω
|
Hot
| 1,060 to 1,645 Ω
|
- NOTICE:
- In the table above, the terms "cold" and "hot" refer to the temperature of the sensor. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).
If the resistance is not as specified, replace the sensor.
