Lower Instrument Panel -- Disassembly |

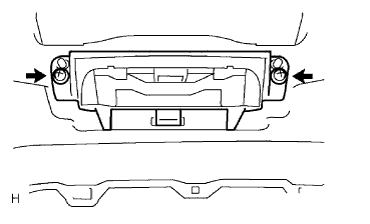

| 1. REMOVE NO. 1 SWITCH HOLE BASE |
 |
Detach the 4 claws and remove the switch hole base.
| 2. REMOVE FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY |

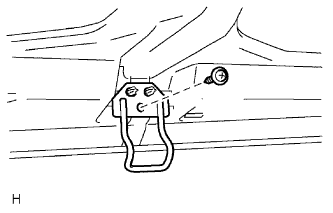

| 3. REMOVE FRONT ASH RECEPTACLE RETAINER SUB-ASSEMBLY |
 |
Remove the 2 screws <B> and retainer.
| 4. REMOVE INSTRUMENT PANEL BRACKET SUB-ASSEMBLY CENTER |
 |
Remove the screw <B> and bracket.
| 5. REMOVE NO. 1 INSTRUMENT PANEL MOUNTING BRACKET |
 |
Remove the screw <F> and bracket.
