Meter / Gauge System Entire Combination Meter Does Not Operate

WIRING DIAGRAM

INSPECTION PROCEDURE

INSPECT FUSE (DCC, DOME, MET)

CHECK WIRE HARNESS (METER - BATTERY AND BODY GROUND)

WIRING DIAGRAM

INSPECTION PROCEDURE

1. Remove the DCC and DOME fuses from the engine room junction block.


2. Remove the MET fuse from the driver side junction block.


3. Measure the resistance of the fuses.


   Standard resistance:

   Below 1 Ω

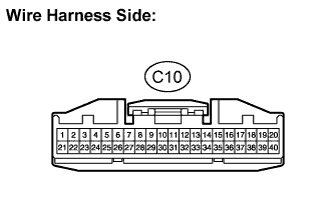

1. Disconnect the C10 meter connector.


2. Measure the voltage of the wire harness side connector.


   Standard voltage:

   Tester Connection	Condition	Specified Condition
   C10-1 - Body ground	Always	10 to 14 V
   C10-21 - Body ground	Ignition switch ON	10 to 14 V
   C10-21 - Body ground	Ignition switch OFF	Below 1 V

3. Measure the resistance of the wire harness side connector.


   Standard resistance:

   Tester Connection	Specified Condition
   C10-22 - Body ground	Below 1 Ω
