PTC HEATER ASSEMBLY - INSPECTION

1. INSPECT QUICK HEATER ASSEMBLY
Ptc Heater Assembly - Inspection. HEATING / AIR CONDITIONING. Land Cruiser URJ200 URJ202 GRJ200 VDJ200

Measure the resistance according to the value(s) in the table below.

  • Standard Resistance:
  • Tester ConnectionConditionSpecified Condition
    A1 - B123 to 25°C (73 to 77°F)0.5 to 2.5 Ω
    A2 - B123 to 25°C (73 to 77°F)0.5 to 2.5 Ω
    A2 - B223 to 25°C (73 to 77°F)0.5 to 2.5 Ω
    A3 - B223 to 25°C (73 to 77°F)0.5 to 2.5 Ω
If the result is not as specified, replace the quick heater assembly (PTC heater assembly).

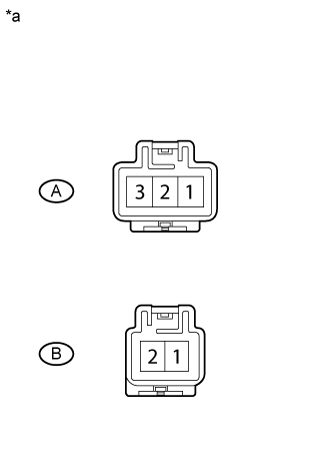

Text in Illustration
*aComponent without harness connected
(Quick Heater Assembly (PTC Heater Assembly)
