COMBINATION METER (w/ Multi-information Display) - INSTALLATION

1. INSTALL COMBINATION METER ASSEMBLY

Connect the connectors.

Install the combination meter with the 4 screws.

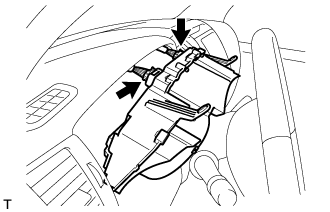

2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Connect the connector.

Attach the 9 claws to install the finish panel.

Attach the 4 claws.

3. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

Attach the 2 claws to install the panel garnish.

4. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

Connect the connectors and 2 clamps.

Attach the 8 claws to install the panel pad.

Install the screw.

Install the clip.

5. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION

Attach the 7 claws to install the panel cushion.

6. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

Attach the 3 claws to install the panel garnish.

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Reset the Autoaway/Return function setting to the previous condition by changing the customize parameter ().

When disconnecting the cable, some systems need to be initialized after the cable is reconnected ().
