INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY

CONNECT PROPELLER SHAFT ASSEMBLY

INSTALL REAR DIFFERENTIAL LOCK ACTUATOR PROTECTOR

INSTALL DIFFERENTIAL PROTECTOR ASSEMBLY

INSTALL REAR AXLE SHAFT

ADD DIFFERENTIAL OIL

Install a new gasket.

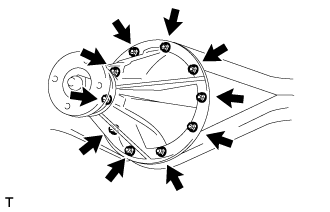

Install the differential carrier with the 10 washers and 10 nuts.

• Torque:
• 72 N*m{ 734 kgf*cm, 53 ft.*lbf}

Connect the differential lock shift actuator and No. 4 transfer indicator switch clamps.

Connect the breather hose.

Align the matchmarks on the yoke and differential flange.

Connect the propeller shaft with the 4 bolts, 4 washers and 4 nuts.

• Torque:
• 88 N*m{ 900 kgf*cm, 65 ft.*lbf}

Install the protector with the 2 nuts.

• Torque:
• 35 N*m{ 357 kgf*cm, 26 ft.*lbf}

Attach the protector with the bolt and nut.

• Torque:
• 15 N*m{ 150 kgf*cm, 11 ft.*lbf}

Connect the 2 connector clamps and wire harness clamp.

• NOTICE:

• Make sure the wire harness of the No. 4 transfer indicator switch fits inside the protector.

Install the rear axle shaft ().

Add differential oil so that the oil level is between 0 to 5 mm (0 to 0.197 in.) from the bottom lip of the differential filler plug hole.

• NOTICE:

• Front differential oil type and viscosity:
• Toyota Genuine Differential gear oil LT 75W-85 GL-5 or equivalent

• Rear Differential Oil Type and Viscosity:

• Item	Oil Type and Viscosity
  w/o LSD	Toyota Genuine Differential gear oil LT 75W-85 GL-5 or equivalent
  w/ LSD	Toyota Genuine Differential gear oil LX 75W-85 GL-5 or equivalent

• Front differential capacity:
• 1.85 to 1.95 liters (1.96 to 2.06 US qts., 1.63 to 1.71 Imp. qts.)

• Rear Differential Capacity:

• Item	Specified Condition
  Standard	4.15 to 4.25 liters (4.39 to 4.49 US qts., 3.66 to 3.74 Imp. qts.)
  w/ LSD	4.10 to 4.20 liters (4.34 to 4.43 US qts., 3.60 to 3.69 Imp. qts.)
  w/ Differential lock

for Front Differential:

for Rear Differential:
