Land Cruiser URJ200 URJ202 GRJ200 VDJ200 - H150F MANUAL TRANSMISSION / TRANSAXLE
OIL PUMP - REASSEMBLY
| 1. INSTALL MANUAL TRANSMISSION OIL PUMP COVER O-RING |
Install a new O-ring to the oil pump relief valve seat.
| 2. INSTALL OIL PUMP RELIEF VALVE SEAT |
Coat the oil pump relief valve seat with gear oil.
Install the relief valve seat into the oil pump cover.
| 3. INSTALL TRANSMISSION OIL PUMP COVER BALL |
Install the ball into the oil pump cover.
| 4. INSTALL TRANSMISSION OIL PUMP COVER COMPRESSION SPRING |
Install the compression spring into the oil pump cover.
| 5. INSTALL NO. 1 MANUAL TRANSMISSION OIL PUMP COVER PLUG |

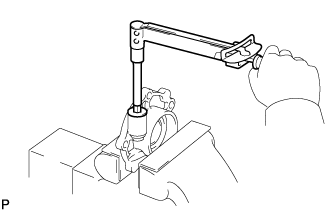

Using a hexagon wrench, install the oil pump cover plug.
- Torque:
- 18 N*m{ 185 kgf*cm, 13 ft.*lbf}
| 6. INSTALL MANUAL TRANSMISSION OIL PUMP DRIVEN ROTOR |
Coat the oil pump driven rotor with gear oil.
Install the oil pump driven rotor into the oil pump cover.
| 7. INSTALL MANUAL TRANSMISSION OIL PUMP DRIVE ROTOR |
Coat the oil pump drive rotor with gear oil.
Install the oil pump drive rotor into the oil pump cover.
| 8. INSTALL TRANSMISSION OIL PUMP COVER OIL SEAL |
Using SST and a hammer, tap a new oil seal into the oil pump cover in accordance with the dimension specified in the illustration.
- SST
- 09950-70010(09951-07150)
09950-60010(09951-00640)
- Dimension A:
- 35.3 to 35.9 mm (1.39 to 1.41 in.)
