INSTALL FRONT OIL PUMP OIL SEAL

FIX FRONT OIL PUMP BODY SUB-ASSEMBLY

INSTALL FRONT OIL PUMP DRIVEN GEAR

INSTALL FRONT OIL PUMP DRIVE GEAR

INSTALL FRONT OIL PUMP BODY O-RING

INSTALL STATOR SHAFT ASSEMBLY

INSTALL CLUTCH DRUM OIL SEAL RING

INSPECT OIL PUMP DRIVE GEAR ROTATION

INSTALL AUTOMATIC TRANSMISSION CASE O-RING

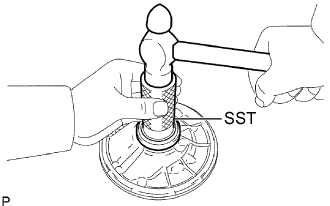

Using SST and a hammer, tap in a new oil seal.

• SST
• 09350-30020(09351-32140)

• HINT:

• The oil seal end should be flush with the outer edge of the pump body.

Coat the lip of the oil seal with MP grease.

Place the oil pump body on the torque converter clutch.

Coat the driven gear with ATF.

Install the driven gear to the oil pump body.

Coat the drive gear with ATF.

Install the drive gear to the oil pump body.

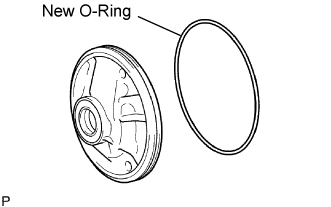

Coat a new O-ring with ATF and install it to the oil pump body.

Align the stator shaft with the bolt holes.

Install the 14 bolts.

• Torque:
• 11 N*m{ 112 kgf*cm, 8 ft.*lbf}

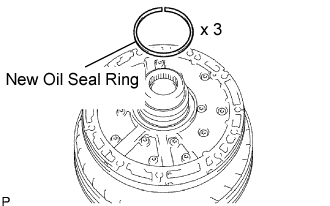

Coat 3 new oil seal rings with ATF.

Squeeze the ends of the 3 oil seal rings together with an overlap distance of 8 mm (0.314 in.) or less, and then install them to the starter shaft groove.

• NOTICE:

• Do not excessively widen the ring.

• HINT:

• After installing the oil seal rings, check that they rotate smoothly.

Place the oil pump body on the torque converter clutch.

Check that the drive gear rotates smoothly.

Remove the oil pump assembly from the torque converter.

Coat a new O-ring with ATF and install it to the oil pump assembly.
