Install the rear transmission oil cooler air duct with the 4 bolts, and then install the air cooled oil cooler tube to the transmission oil cooler air duct with the bolt.

Torque:
4.9 N*m{ 50 kgf*cm, 43 in.*lbf}

Temporarily put the oil cooler on the radiator support.

NOTICE:

Securely attach the 2 claws of the oil cooler into the holes of the radiator support.

Install the 4 bolts in the sequence shown in the illustration.

Torque:
12 N*m{ 122 kgf*cm, 9 ft.*lbf}

2. INSTALL TRANSMISSION OIL COOLER AIR DUCT

Install the oil cooler air duct with the 4 bolts.

Torque:
4.9 N*m{ 50 kgf*cm, 43 in.*lbf}

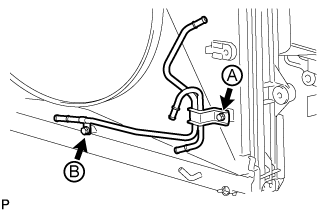

3. INSTALL OIL COOLER TUBE SUB-ASSEMBLY

Temporarily install the oil cooler tube to the fan shroud with bolt A. Install bolt B and tighten it to the specified torque. Then tighten bolt A to the specified torque.

Torque:
5.0 N*m{ 51 kgf*cm, 44 in.*lbf}

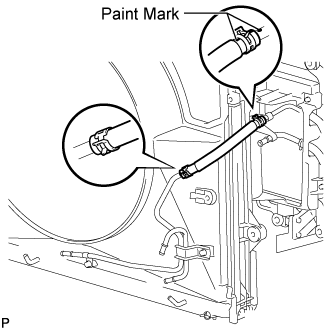

4. CONNECT INLET NO. 4 OIL COOLER HOSE

Connect the inlet oil cooler hose as shown in the illustration.

NOTICE:

Make sure the pinching portion of each clip is facing the direction shown in the illustration and the paint marks are aligned as shown in the illustration.

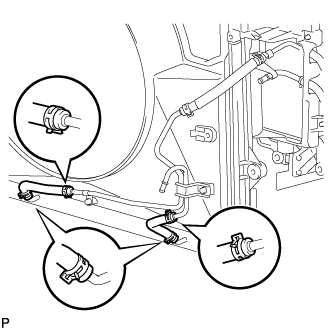

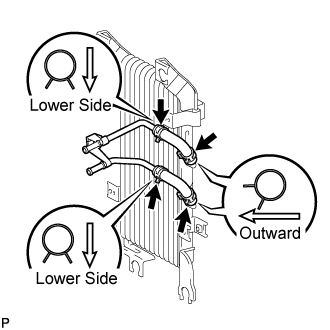

5. CONNECT INLET NO. 2 OIL COOLER HOSE AND INLET NO. 3 OIL COOLER HOSE

Connect the 2 transmission oil cooler hoses as shown in the illustration.

NOTICE:

Make sure the pinching portion of each clip is facing the direction shown in the illustration.

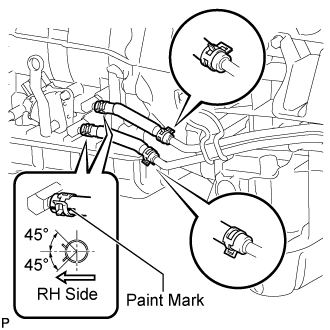

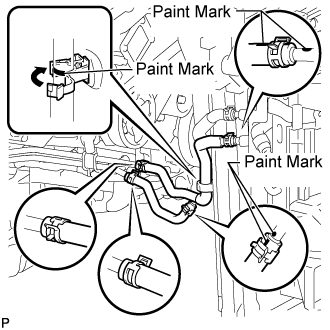

6. CONNECT INLET NO. 1 OIL COOLER HOSE AND OUTLET NO. 1 OIL COOLER HOSE

Connect the 2 oil cooler hoses as shown in the illustration.

NOTICE:

Make sure the pinching portion of each clip is facing the direction shown in the illustration and the paint marks are aligned as shown in the illustration.

Pass the hose through the flexible hose clamp and close the clamp shown in the illustration.

7. CONNECT TRANSMISSION OIL COOLER HOSE

Connect the 2 transmission oil cooler hoses as shown in the illustration.

NOTICE:

Make sure the pinching portion of each clip is facing the direction shown in the illustration.

8. ADD AUTOMATIC TRANSMISSION FLUID

Add automatic transmission fluid ().

9. INSTALL HEADLIGHT ASSEMBLY RH

for Standard: ()

for HID Headlight: ()

10. INSTALL FRONT FENDER APRON TRIM PACKING C

Install the front fender apron trim packing C with the 4 clips.

11. INSTALL FRONT FENDER APRON TRIM PACKING A

Install the front fender apron trim packing A with the 3 clips.

12. INSTALL NO. 2 ENGINE UNDER COVER

Install the No. 2 engine under cover with the 2 bolts.

Torque:
29 N*m{ 296 kgf*cm, 21 ft.*lbf}

13. INSTALL NO. 1 ENGINE UNDER COVER

Install the No. 1 engine under cover with the 10 bolts.

Torque:
29 N*m{ 296 kgf*cm, 21 ft.*lbf}

14. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

Push in the clip to install the front fender splash shield sub-assembly LH.

Install the 3 bolts and screw.

15. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

Push in the clip to install the front fender splash shield sub-assembly RH.

Install the 3 bolts and 2 screws.

A750F AUTOMATIC TRANSMISSION / TRANSAXLE

Land Cruiser URJ200 URJ202 GRJ200 VDJ200

OIL COOLER
