DTC P2759 Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)
DESCRIPTION

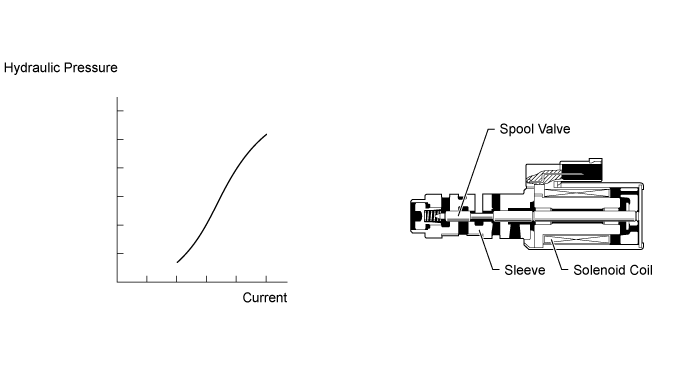

The amount of current flow to the solenoid is controlled by the current of the ECM output signal. During the lock-up operation, if the duty ratio increases, the lock-up hydraulic pressure increases.
| DTC Code | DTC Detection Condition | Trouble Area |
| P2759 | An open or short is detected in the shift solenoid valve SLU circuit for 1 sec. or more while driving (1 trip detection logic). | Open or short in shift solenoid valve SLU circuit
Shift solenoid valve SLU
ECM
|
MONITOR DESCRIPTION
When an open or short in the shift solenoid valve (SLU) circuit is detected, the ECM determines there is a malfunction. The ECM will turn on the MIL and store this DTC.
WIRING DIAGRAM
INSPECTION PROCEDURE
| 1.INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SLU) |
Disconnect the transmission wire connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
| Tester Connection | Condition | Specified Condition |
| 13 (SLU+) - 5 (SLU-) | 20°C (68°F) | 5.0 to 5.6 Ω |
| 13 (SLU+) - Body ground | Always | 10 kΩ or higher |
| 5 (SLU-) - Body ground | Always | 10 kΩ or higher |

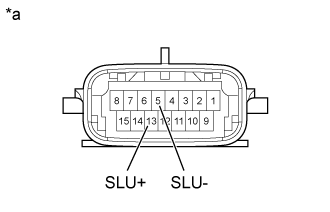

Text in Illustration| *a | Component without harness connected
(Transmission Wire) |
| 2.CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM) |
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
| Tester Connection | Condition | Specified Condition |
| C45-10 (SLU+) - C45-11 (SLU-) | 20°C (68°F) | 5.0 to 5.6 Ω |
| C45-10 (SLU+) - Body ground | Always | 10 kΩ or higher |
| C45-11 (SLU-) - Body ground | Always | 10 kΩ or higher |

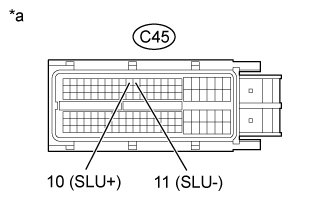

Text in Illustration| *a | Front view of wire harness connector
(to ECM) |
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
| 3.INSPECT SHIFT SOLENOID VALVE SLU
|
Remove the shift solenoid valve SLU.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
| Tester Connection | Condition | Specified Condition |
| 1 - 2 | 20°C (68°F) | 5.0 to 5.6 Ω |
Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.
- OK:
| Measurement Condition | Specified Condition |
Battery positive (+) with a 21 W bulb → Terminal 2
Battery negative (-) → Terminal 1
| Valve moves and makes an operating noise |
Text in Illustration| *a | Component without harness connected
(Shift Solenoid Valve SLU) |
| | REPLACE SHIFT SOLENOID VALVE SLU ()
|
|
|
| OK | |
| |
| REPAIR OR REPLACE TRANSMISSION WIRE ()
|
|
