AUTOMATIC TRANSMISSION SYSTEM (for 1GR-FE) - L4 Position Switch Circuit
DESCRIPTION
The four wheel drive control ECU judges whether the transfer is in the L4 position based on the information from the limit switch inside the transfer shift actuator assembly which is detected by the ECM. The four wheel drive control ECU then inputs a signal to the combination meter assembly via CAN communication and turns on the 4LO indicator.
WIRING DIAGRAM
Refer to DTC P2772 ().
INSPECTION PROCEDURE
| 1.CHECK HARNESS AND CONNECTOR (FOUR WHEEL DRIVE CONTROL ECU - BODY GROUND)
|
Disconnect the four wheel drive control ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
| Tester Connection | Condition | Specified Condition |
| A27-21 (L4) - Body ground | Always | 10 kΩ or higher |
Text in Illustration| *a | Front view of wire harness connector
(to Four Wheel Drive Control ECU) |
| OK | |
| |
| GO TO TRANSFER SYSTEM INSPECTION ()
|
|
| 2.CHECK HARNESS AND CONNECTOR (FOUR WHEEL DRIVE CONTROL ECU - ECM)
|
Disconnect the ECM connector.
Disconnect the A27 four wheel drive control ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
| Tester Connection | Condition | Specified Condition |
| A38-21 (L4) - Body ground | Always | 10 kΩ or higher |

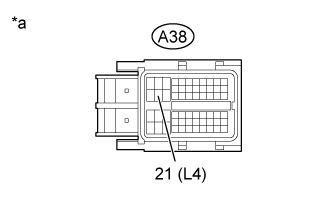

Text in Illustration| *a | Front view of wire harness connector
(to ECM) |
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
