Rear Combination Light Assembly Disassembly

Vehicle Exterior. Land Cruiser. Urj200, 202 Grj200 Vdj200
Lighting (Ext). Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. REMOVE REAR COMBINATION LIGHT BODY GASKET LH

  2. REMOVE REAR TURN SIGNAL LIGHT BULB

  3. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH

Rear Combination Light Assembly -- Disassembly


HINT:
  1. Use the same procedure for the RH and LH sides.
  2. The procedure listed below is for the LH side.


1. REMOVE REAR COMBINATION LIGHT BODY GASKET LH


    Land Cruiser. Urj200, 202 Grj200 Vdj200

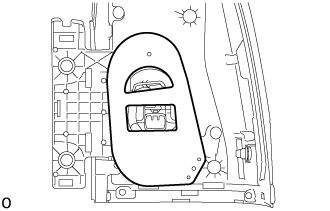

  1. Remove the rear combination light body gasket LH.

    NOTICE:
    The gasket must not be reused.


2. REMOVE REAR TURN SIGNAL LIGHT BULB


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Lighting (Ext).Lighting System.Rear Combination Light Assembly Disassembly

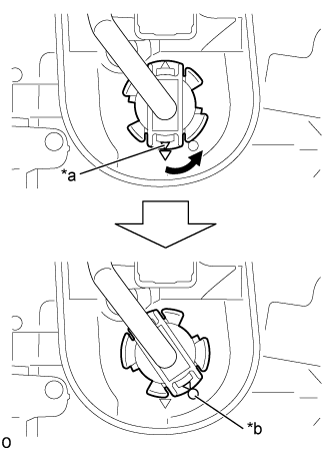

  1. Turn the bulb socket counter clockwise until the matchmark is aligned with the unlock position mark to disconnect the bulb socket.

    Text in Illustration
    *a
    		Matchmark
    *b
    		Unlock Position Mark


    Land Cruiser. Urj200, 202 Grj200 Vdj200

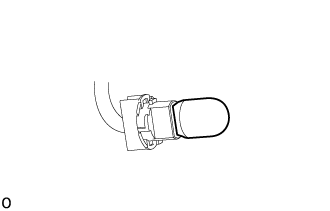

  1. Remove the rear turn signal light bulb from the bulb socket.



3. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH


    Land Cruiser. Urj200, 202 Grj200 Vdj200

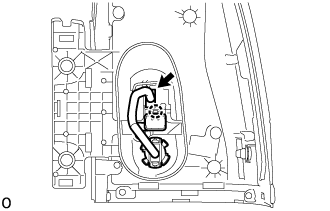

  1. Detach the connector and wire harness clamp to remove the rear combination light socket and wire sub-assembly LH.
