DTC C1625 Open or Short in Steering Angle Sensor +B


DESCRIPTION

This DTC is stored if the rear television camera assembly receives a signal via CAN communication from the spiral with sensor cable sub-assembly that indicates a power supply problem.

DTC Code
Detection Item
DTC Detection Condition
Trouble Area
C1625
Open or Short in Steering Angle Sensor +B
Open or short in spiral with sensor cable sub-assembly power source
  1. Harness or connector
  2. Spiral with sensor cable sub-assembly

WIRING DIAGRAM


Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System. Dtc C1625 Open Or Short In Steering Angle Sensor +B


INSPECTION PROCEDURE

NOTICE:
  1. When "System initializing" is displayed on the multi-display after disconnecting the cable from the negative (-) battery terminal, correct the steering angle neutral point (Click here).
  2. Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed (Click here).
  3. Inspect the fuses for circuits related to this system before performing the following procedure.
1.CHECK HARNESS AND CONNECTOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY - BATTERY AND BODY GROUND)


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System. Dtc C1625 Open Or Short In Steering Angle Sensor +B

  1. Disconnect the E163*1 or E121*2 spiral with sensor cable sub-assembly connector.

    1. *1: w/ Variable Gear Ratio Steering System
    2. *2: w/o Variable Gear Ratio Steering System

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    w/ Variable Gear Ratio Steering System:
    Tester Connection
    		Condition
    		Specified Condition
    E163-1 (ESS) - Body ground
    		Always
    		Below 1 Ω
    Standard Resistance:
    w/o Variable Gear Ratio Steering System:
    Tester Connection
    		Condition
    		Specified Condition
    E121-1 (ESS) - Body ground
    		Always
    		Below 1 Ω

  1. Measure the voltage according to the value(s) in the table below.

    Standard Voltage:
    w/ Variable Gear Ratio Steering System:
    Tester Connection
    		Condition
    		Specified Condition
    E163-4 (IG1) - E163-1 (ESS)
    		Engine switch on (IG)
    		11 to 14 V
    E163-5 (BAT) - E163-1 (ESS)
    		Always
    		11 to 14 V
    w/o Variable Gear Ratio Steering System:
    Tester Connection
    		Condition
    		Specified Condition
    E121-4 (IG1) - E121-1 (ESS)
    		Engine switch on (IG)
    		11 to 14 V
    E121-8 (BAT) - E121-1 (ESS)
    		Always
    		11 to 14 V

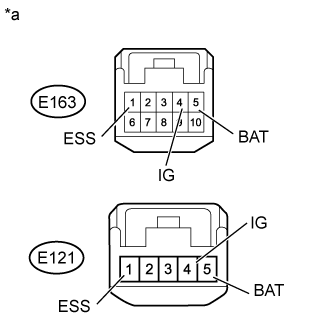

Text in Illustration
*A
w/ Variable Gear Ratio Steering System
*B
w/o Variable Gear Ratio Steering System
*a
Front view of wire harness connector
(to Spiral with Sensor Cable Sub-assembly)


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY (Click here)
