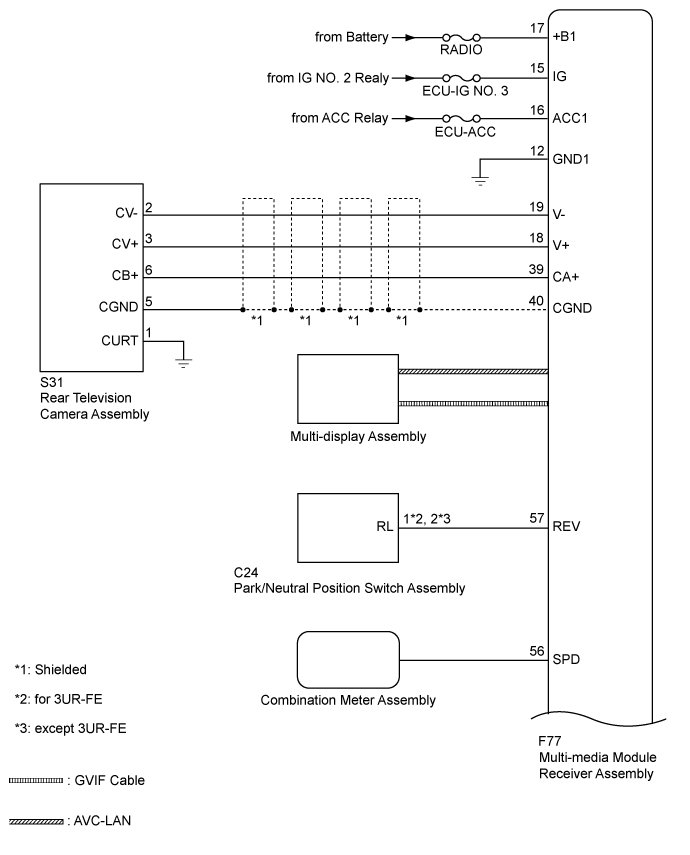

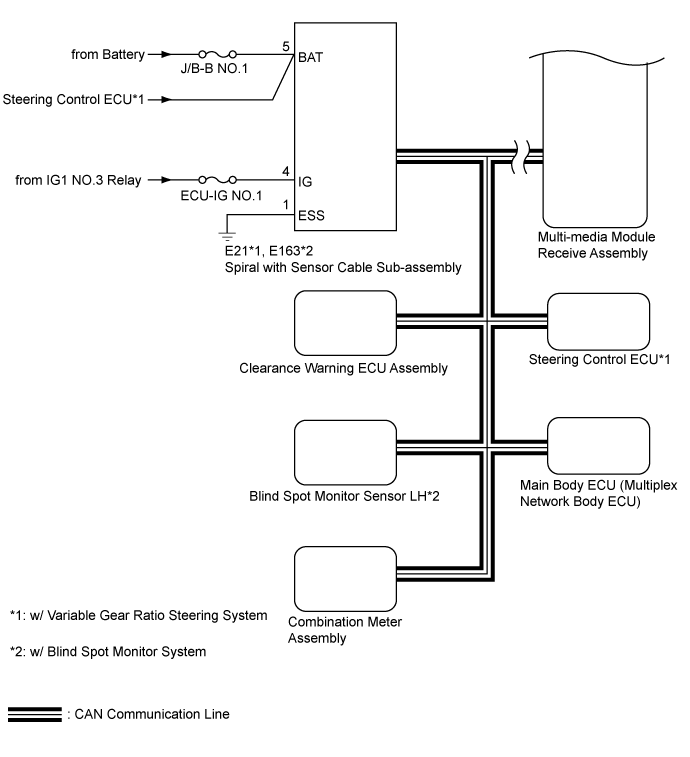

Parking Assist Monitor System -- System Diagram



Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Parking Assist Monitor System System Diagram


Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Parking Assist Monitor System System Diagram


Communication Table
Sender
Receiver
Signal
Line
Multi-media Module Receiver Assembly
Multi-display Assembly
Video signal
GVIF
Spiral with Sensor Cable Sub-assembly
Multi-media Module Receiver Assembly
Steering angle signal
CAN
Combination Meter Assembly
Multi-media Module Receiver Assembly
Vehicle speed signal
CAN
Main Body ECU (Multiplex Network Body ECU)
Multi-media Module Receiver Assembly
  1. Back door courtesy switch signal
  2. Vehicle information signal
CAN
Steering Control ECU*1
Multi-media Module Receiver Assembly
VGRS relative angle signal
CAN
Clearance Warning ECU Assembly*2
Multi-media Module Receiver Assembly
Sonar information signal
CAN
Blind Spot Monitor Sensor LH*3
Steering Control ECU*3
RCTA information signal
CAN
  1. *1: w/ VGRS System
  2. *2: w/ TOYOTA Parking Assist-Sensor System
  3. *3: w/ Blind Spot Monitor System
