Parking Assist Monitor System -- Diagnosis System



PARKING ASSIST MONITOR SYSTEM DIAGNOSTIC MODE

  1. In diagnostic mode for the parking assist monitor system, signals received by the radio receiver assembly can be checked and the parking assist monitor system can be calibrated, adjusted and checked using the multi-display assembly with the connector connected.

    NOTICE:
    Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed (Click here).
    HINT:
    The displayed items may differ depending on vehicle specifications.

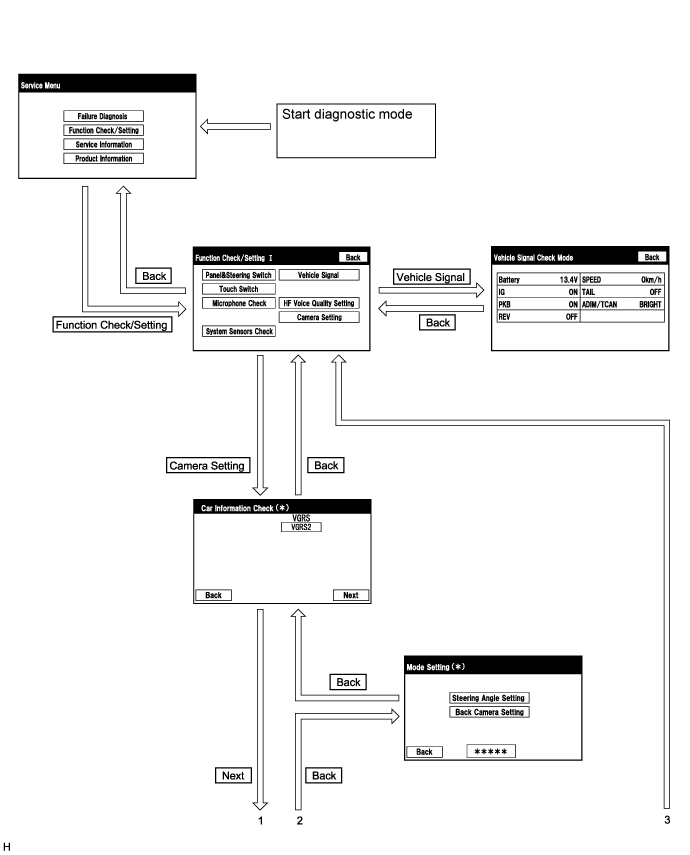

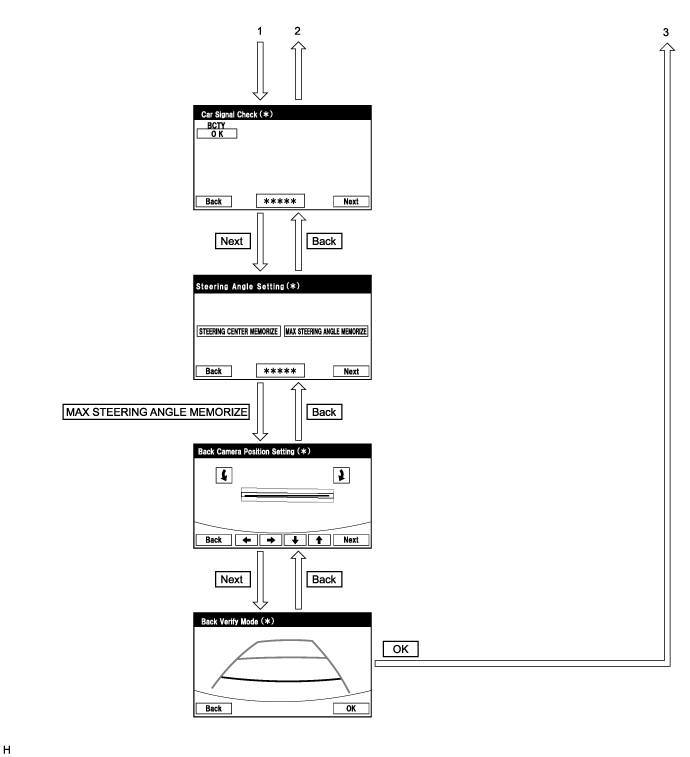

DIAGNOSIS SCREEN TRANSITION (DURING PARKING ASSIST MONITOR SYSTEM INITIALIZATION)

Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Parking Assist Monitor System Diagnosis System


Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Parking Assist Monitor System Diagnosis System

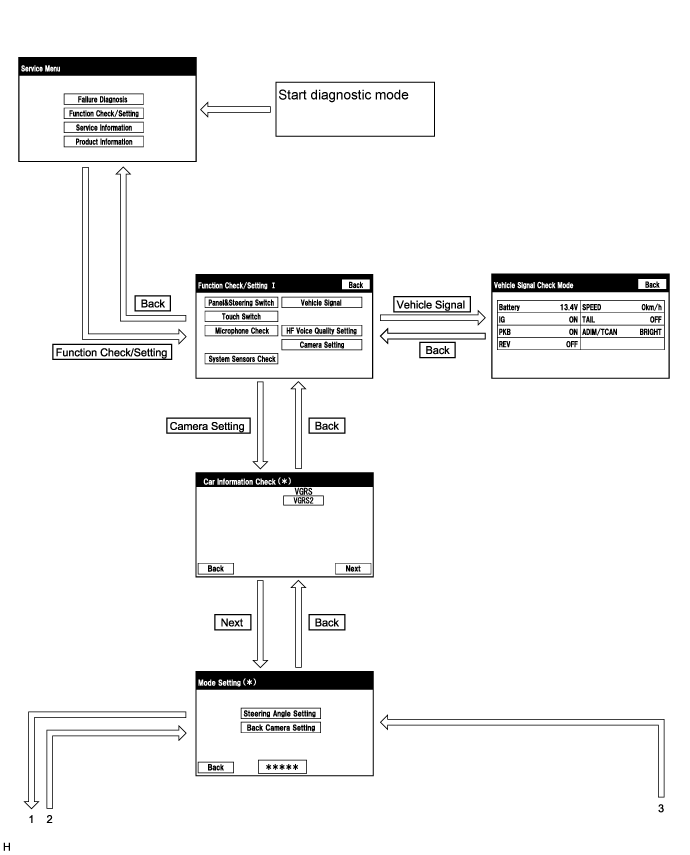

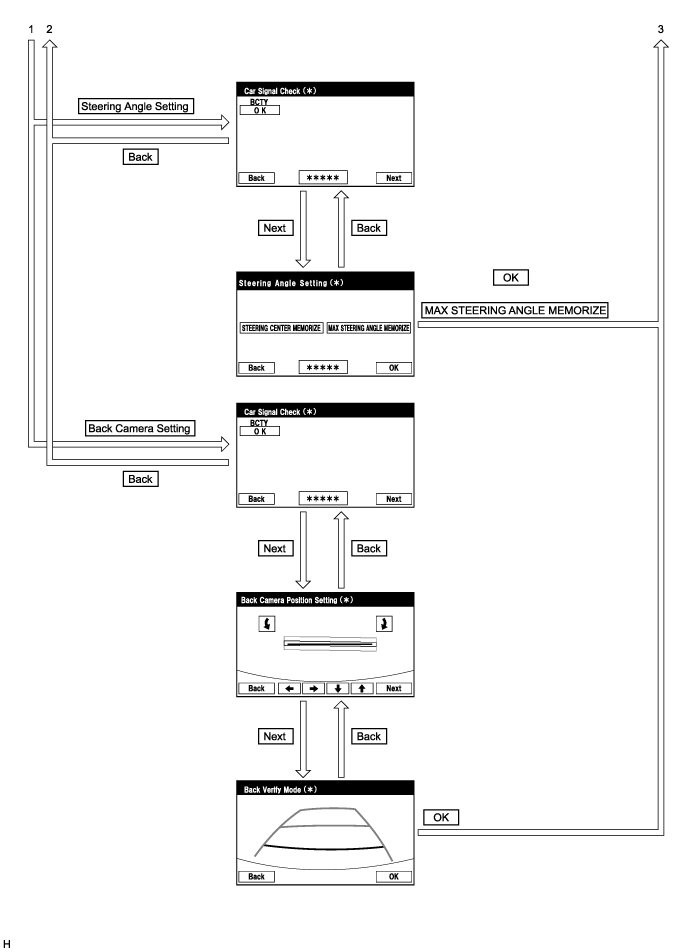

DIAGNOSIS SCREEN TRANSITION (AFTER PARKING ASSIST MONITOR SYSTEM INITIALIZATION)

Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Parking Assist Monitor System Diagnosis System


Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Parking Assist Monitor System Diagnosis System


VEHICLE SIGNAL CHECK
HINT:
Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

  1. Start diagnostic mode.

    1. w/ Navigation System : Click here
    2. w/o Navigation System : Click here


    2. Land Cruiser. Urj200, 202 Grj200 Vdj200

  2. Select "Function Check/Setting" on the "Service Menu" screen to display the "Function Check/ Setting I" screen.



    3. Land Cruiser. Urj200, 202 Grj200 Vdj200

  3. Select "Vehicle Signal" on the "Function Check/ Setting I" screen.



    4. Land Cruiser. Urj200, 202 Grj200 Vdj200

  4. Vehicle Signal Check Mode

    1. When the "Vehicle Signal Check Mode" screen is displayed, check the item displayed for "REV".

      1. w/ Navigation System : Click here
      2. w/o Navigation System : Click here
      HINT:
      1. Only conditions having inputs are displayed.
      2. This screen displays vehicle signals input to the multi-media module receiver assembly.

  5. Finish diagnostic mode.

    1. w/ Navigation System : Click here
    2. w/o Navigation System : Click here

CAR SIGNAL CHECK (PARKING ASSIST MONITOR SYSTEM INPUT SIGNALS)
HINT:
Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.


  1. Start diagnostic mode.

    1. w/ Navigation System : Click here
    2. w/o Navigation System : Click here



      Land Cruiser. Urj200, 202 Grj200 Vdj200

    1. Select "Function Check/Setting" on the "Service Menu" screen to display the "Function Check/ Setting I" screen.



      2. Land Cruiser. Urj200, 202 Grj200 Vdj200

    2. Select "Camera Setting" on the "Function Check/Setting I" screen.

      HINT:
      After "Camera Setting" is selected, the screen transitions differ depending on whether initialization of the parking assist monitor system was performed after the rear television camera assembly was replaced.
      Parking Assist Monitor System Initialization
      		Screen Transition
      Not performed
      		Car Signal Check screen
      Performed
      		Mode Setting screen


      3. Land Cruiser. Urj200, 202 Grj200 Vdj200

    3. When the screen changes to the "Mode Setting" screen, select "Back Camera Setting" to display the "Car Signal Check" screen.

      HINT:
      To select a grayed out item, select and hold the item for 2 seconds or more.


    2. Land Cruiser. Urj200, 202 Grj200 Vdj200

  2. Car Signal Check

    1. On the "Car Signal Check" screen, it is possible to inspect the state of signals and check the settings.

      Item
      		Inspection Detail
      		Note
      BCTY
      		Back door courtesy light switch signal input
      		When "CHK" (red) is displayed, selecting "Next" will not change the screen to the next screen.
      HINT:
      1. When "CHK" (red) is displayed, perform inspections based on the result of the following inspections.
      2. If performing the adjustment after proceeding to the next screen, confirm that all items display "OK" (blue) before selecting "Next".

  3. BCTY inspection

    HINT:
    If "CHK" (red) is displayed for "BCTY", check for DTCs and perform troubleshooting based on the output DTCs (Click here).

  4. Finish diagnostic mode.

    1. w/ Navigation System : Click here
    2. w/o Navigation System : Click here

CAMERA SYNCHRONOUS ERROR HISTORY
HINT:
This function is used to check the date and time of occurrence when a camera synchronous error occurs.

  1. Check camera synchronous error history.

    1. Connect the GTS to the DLC3.

    2. Turn the engine switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: Body Electrical / Navigation System / Utility / Camera Synchronous Error History.

    5. When an item is stored for Camera Synchronous Error History, record it before repairing the multi-media module receiver assembly and rear television camera assembly.

      HINT:
      Camera Synchronous Error History can store up to 5 history data items. If a new camera synchronous error occurs when 5 data items have already been stored, the oldest data is cleared and the new data is stored.

  2. Clear camera synchronous error history.

    1. When DTCs are cleared using any of the following operations, Camera Synchronous Error History will be cleared as well.

      1. w/ Navigation System : Click here
      2. w/o Navigation System : Click here
      1. Cleared using the GTS.
      2. Cleared using the system check mode screen.
      3. Cleared using the unit check mode screen.

VIDEO DEVICE CONNECTION CHECK
  1. w/ Navigation System : Click here
  2. w/o Navigation System : Click here

CALIBRATION WHEN SERVICING VEHICLE
NOTICE:
Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed (Click here).
