DTC B1324 Lost Communication with Meter |
DESCRIPTION
This DTC is stored when a communication error occurs between the radio and display receiver assembly and combination meter assembly.DTC No.
| DTC Detection Condition
| Trouble Area
|
B1324
| After the radio and display receiver assembly receives a registration information signal, which is sent by the combination meter assembly when the engine switch is on (ACC), 1 or more times, the radio and display receiver assembly does not receive the signal for 30 seconds or more.
| - Combination meter assembly
- Radio and display receiver assembly
- Harness or connector
|

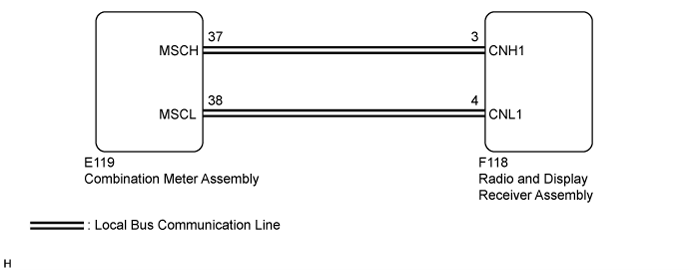

WIRING DIAGRAM
INSPECTION PROCEDURE
1.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY) |

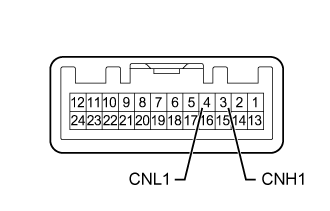

Disconnect the F118 radio and display receiver assembly connector.
Disconnect the E119 combination meter assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
F118-3 (CNH1) - E119-37 (MSCH)
| Always
| Below 1 Ω
|
F118-4 (CNL1) - E119-38 (MSCL)
| Always
| Below 1 Ω
|
F118-3 (CNH1) - Body ground
| Always
| 10 kΩ or higher
|
F118-4 (CNL1) - Body ground
| Always
| 10 kΩ or higher
|
F118-3 (CNH1) - F118-4 (CNL1)
| Always
| 10 kΩ or higher
|
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection
| Condition
| Specified Condition
|
F118-3 (CNH1) - Body ground
| Always
| Below 1 V
|
F118-4 (CNL1) - Body ground
| Always
| Below 1 V
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
2.INSPECT COMBINATION METER ASSEMBLY |
Remove the combination meter assembly (Click here).
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
37 (MSCH) - 38 (MSCL)
| Always
| 108 to 132 Ω
|
3.INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY |
Remove the radio and display receiver assembly (Click here).
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
3 (CNH1) - 4 (CNL1)
| Always
| 108 to 132 Ω
|
| REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY (Click here) |
|
|
4.REPLACE COMBINATION METER ASSEMBLY |
Replace the combination meter assembly with a new one (Click here).
Clear the DTCs (Click here).
Recheck for DTCs and check that no DTCs are output.
- OK:
- No DTCs are output.
| REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY (Click here) |
|
|
5.CHECK METER / GAUGE SYSTEM |
Turn the engine switch on (IG) and wait 30 seconds.
Operate the steering pad switch assembly and check that the audio tab is displayed on the multi-information display in the combination meter assembly and the audio system can be operated normally.
- OK:
- Audio system returns to normal.
| REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY (Click here) |
|
|
