DTC C1AB2 Short to GND in Outer Mirror Indicator(Master) |
DESCRIPTION
This DTC is stored when the blind spot monitor sensor LH detects a ground short in the outer rear view mirror indicator LH.DTC No.
| DTC Detection Condition
| Trouble Area
|
C1AB2
| Both of the following conditions are met:
- The blind spot monitor main switch (steering pad switch assembly [multi-function switch]) is on.
- The current that is sent from the blind spot monitor sensor to the indicator is above a specified level for a specified period of time.
| - Outer rear view mirror LH (outer rear view mirror indicator LH)
- Outer rear view mirror assembly LH
- Harness or connector
- Blind spot monitor sensor LH
- Outer mirror control ECU assembly LH
|
WIRING DIAGRAM
INSPECTION PROCEDURE
- NOTICE:
- When checking for DTCs, make sure that the blind spot monitor main switch (steering pad switch assembly [multi-function switch]) is on.
Clear the DTCs (Click here).
Recheck for DTCs and check if the same DTC is output again.
- OK:
- No DTCs are output.
2.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH - OUTER MIRROR CONTROL ECU ASSEMBLY LH) |
Disconnect the blind spot monitor sensor LH connector.
Disconnect the I40 outer mirror control ECU assembly LH connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
r2-4 (OMIR) - Body ground
| Always
| 10 kΩ or higher
|
Text in Illustration*a

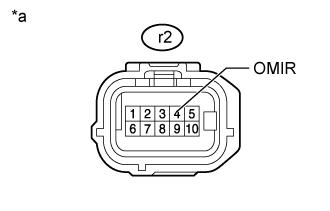

| Front view of wire harness connector (to Blind Spot Monitor Sensor LH)
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
3.CHECK HARNESS AND CONNECTOR (OUTER MIRROR CONTROL ECU ASSEMBLY LH - OUTER REAR VIEW MIRROR ASSEMBLY LH) |
Disconnect the outer mirror control ECU assembly LH connector.
Disconnect the I40 outer rear view mirror assembly LH connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
I40-8 (BDIL) - Body ground
| Always
| 10 kΩ or higher
|
Text in Illustration*a

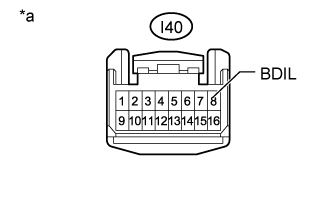

| Front view of wire harness connector (to Outer Mirror Control ECU Assembly LH)
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
4.CHECK OUTER REAR VIEW MIRROR ASSEMBLY LH |
Disconnect the outer rear view mirror assembly LH connector.
Disconnect the IND2 outer rear view mirror LH connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
I35-15 (BSL+) - Body ground
| Always
| 10 kΩ or higher
|
Text in Illustration*a

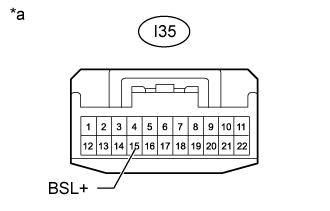

| Front view of wire harness connector (to Outer Rear View Mirror Assembly LH)
|
| REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH (Click here) |
|
|
5.INSPECT OUTER MIRROR CONTROL ECU ASSEMBLY LH |
Remove the outer mirror control ECU assembly LH connector (Click here).
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
I41-13 (BDSL) - I41-7 (GND)
| Always
| 10 kΩ or higher
|
Text in Illustration*a

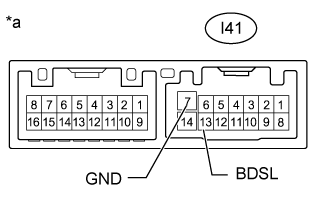

| Component without harness connected (Outer Mirror Control ECU Assembly LH)
|
| REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY LH (Click here) |
|
|
6.CHECK OUTER REAR VIEW MIRROR LH |
Replace the outer rear view mirror LH (Click here).
Clear the DTCs (Click here).
Recheck for DTCs and check if the same DTC is output again.
- OK:
- No DTCs are output.
OK |
|
|
|
END (OUTER REAR VIEW MIRROR LH WAS DEFECTIVE) |
|
