DTC U0232 Lost Communication with Blind Spot Monitor Slave Module


DESCRIPTION

This DTC is stored when the blind spot monitor sensor LH judges that there is a communication error with the blind spot monitor sensor RH.

DTC No.
DTC Detection Condition
Trouble Area
U0232
The blind spot monitor sensor LH cannot receive signals from the blind spot monitor sensor RH.
  1. CAN communication Line
  2. Blind spot monitor sensor LH
  3. Blind spot monitor sensor RH

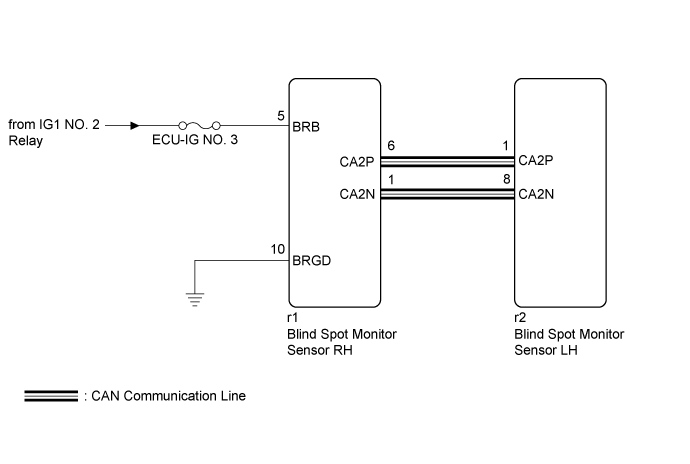

WIRING DIAGRAM


Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System. Dtc U0232 Lost Communication With Blind Spot Monitor Slave Module


INSPECTION PROCEDURE

NOTICE:
  1. When checking for DTCs, make sure that the blind spot monitor main switch (steering pad switch assembly [multi-function switch]) is on.
  2. Inspect the fuses for circuits related to this system before performing the following inspection procedure.
1.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH - BLIND SPOT MONITOR SENSOR LH)

  1. Disconnect the r1 blind spot monitor sensor RH connector.

  1. Disconnect the r2 blind spot monitor sensor LH connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    r1-6 (CA2P) - r2-1 (CA2P)
    		Always
    		Below 1 Ω
    r1-1 (CA2N) - r2-8 (CA2N)
    		Always
    		Below 1 Ω


NG
REPAIR OR REPLACE CAN LINE OR CONNECTOR
OK


2.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH - BATTERY AND BODY GROUND)


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System. Dtc U0232 Lost Communication With Blind Spot Monitor Slave Module

  1. Disconnect the r1 blind spot monitor sensor RH connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    r1-10 (BRGD) - Body ground
    		Always
    		Below 1 Ω

  1. Measure the voltage according to the value(s) in the table below.

    Standard Voltage:
    Tester Connection
    		Switch Condition
    		Specified Condition
    r1-5 (BRB) - Body ground
    		Engine switch on (IG)
    		11 to 14 V

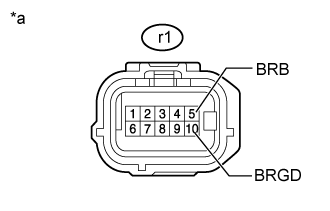

Text in Illustration
*a
Front view of wire harness connector
(to Blind Spot Monitor Sensor RH)


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


3.REPLACE BLIND SPOT MONITOR SENSOR RH

  1. Replace the blind spot monitor sensor RH (Click here).


NEXT


4.RECHECK DTC

  1. Clear the DTCs (Click here).

  1. Recheck for DTCs and check if the same DTC is output again.

    OK:
    No DTCs are output.


NG
REPLACE BLIND SPOT MONITOR SENSOR LH (Click here)
OK

END (BLIND SPOT MONITOR SENSOR RH WAS DEFECTIVE)
