DTC C1AB1 Short to +B in Outer Mirror Indicator(Slave)

DESCRIPTION

This DTC is stored when the blind spot monitor sensor RH detects a +B short in the outer rear view mirror indicator RH.

DTC No.

DTC Detection Condition

Trouble Area

C1AB1

Both of the following conditions are met:

The blind spot monitor main switch (steering pad switch assembly [multi-function switch]) is on.

The blind spot monitor sensor is not sending voltage to the indicator but the indicator receives voltage above a specified level for a specified period of time.

Outer rear view mirror RH (outer rear view mirror indicator RH)
Outer rear view mirror assembly RH
Harness or connector
Blind spot monitor sensor RH
Outer mirror control ECU assembly RH

WIRING DIAGRAM

Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.
Dtc
C1Ab1 Short To +B In Outer Mirror Indicator(Slave)

INSPECTION PROCEDURE

NOTICE:

When checking for DTCs, make sure that the blind spot monitor main switch (steering pad switch assembly [multi-function switch]) is on.

1.CHECK FOR DTC

Clear the DTCs (Click here).

Recheck for DTCs and check if the same DTC is output again.
OK:
No DTCs are output.

Go to step 2

USE SIMULATION METHOD TO CHECK (Click here)

2.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH - OUTER REAR VIEW MIRROR RH [OUTER REAR VIEW MIRROR INDICATOR RH])

Disconnect the blind spot monitor sensor RH connector.

Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Tester Connection
Switch Condition
Specified Condition
r1-4 (OMIR) - Body ground
Engine switch on (IG)
Below 1 V
Text in Illustration

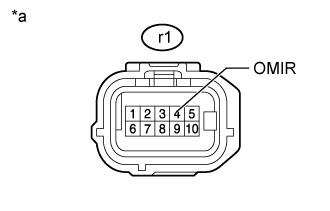

*a
Front view of wire harness connector
(to Blind Spot Monitor Sensor RH)

Text in Illustration
*a	Front view of wire harness connector (to Blind Spot Monitor Sensor RH)

Go to step 3

REPLACE BLIND SPOT MONITOR SENSOR RH (Click here)

3.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH - OUTER REAR VIEW MIRROR ASSEMBLY RH)

Disconnect the blind spot monitor sensor RH connector.

Disconnect the IND1 outer rear view mirror RH connector.

Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Tester Connection
Switch Condition
Specified Condition
r1-4 (OMIR) - Body ground
Engine switch on (IG)
Below 1 V
Text in Illustration
*a
Front view of wire harness connector
(to Blind Spot Monitor Sensor RH)

Text in Illustration
*a	Front view of wire harness connector (to Blind Spot Monitor Sensor RH)

Go to step 4

REPLACE OUTER REAR VIEW MIRROR RH (Click here)

4.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH - OUTER MIRROR CONTROL ECU ASSEMBLY RH)

Disconnect the blind spot monitor sensor RH connector.

Disconnect the I32 outer rear view mirror assembly RH connector.

Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Tester Connection
Switch Condition
Specified Condition
r1-4 (OMIR) - Body ground
Engine switch on (IG)
Below 1 V
Text in Illustration
*a
Front view of wire harness connector
(to Blind Spot Monitor Sensor RH)

Text in Illustration
*a	Front view of wire harness connector (to Blind Spot Monitor Sensor RH)

Go to step 5

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH (Click here)

5.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH - OUTER MIRROR CONTROL ECU ASSEMBLY RH)

Disconnect the blind spot monitor sensor RH connector.

Disconnect the I37 outer mirror control ECU assembly RH connector.

Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Tester Connection
Switch Condition
Specified Condition
r1-4 (OMIR) - Body ground
Engine switch on (IG)
Below 1 V
Text in Illustration
*a
Front view of wire harness connector
(to Blind Spot Monitor Sensor RH)

Text in Illustration
*a	Front view of wire harness connector (to Blind Spot Monitor Sensor RH)

Go to step 6

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH - OUTER MIRROR CONTROL ECU ASSEMBLY RH)

Disconnect the blind spot monitor sensor RH connector.

Disconnect the I38 outer mirror control ECU assembly RH connector.

Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Tester Connection
Switch Condition
Specified Condition
r1-4 (OMIR) - Body ground
Engine switch on (IG)
Below 1 V
Text in Illustration
*a
Front view of wire harness connector
(to Blind Spot Monitor Sensor RH)

Text in Illustration
*a	Front view of wire harness connector (to Blind Spot Monitor Sensor RH)

REPAIR OR REPLACE HARNESS OR CONNECTOR

REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY RH (Click here)

Tester Connection	Switch Condition	Specified Condition
r1-4 (OMIR) - Body ground	Engine switch on (IG)	Below 1 V
