Blind Spot Monitor System Terminals Of Ecu

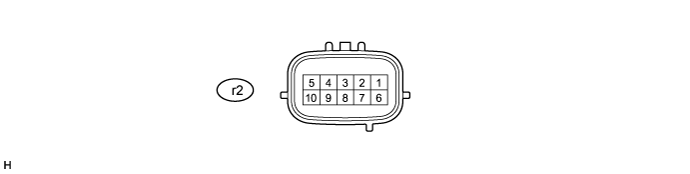

BLIND SPOT MONITOR SENSOR LH (MASTER)

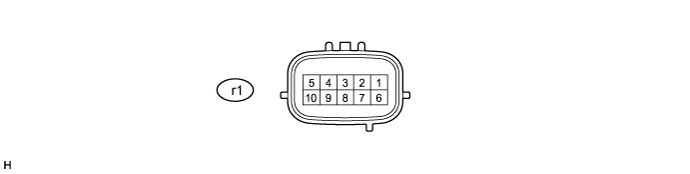

BLIND SPOT MONITOR SENSOR RH (SLAVE)
Blind Spot Monitor System -- Terminals Of Ecu |
| BLIND SPOT MONITOR SENSOR LH (MASTER) |
Terminal No.
(Symbol)
| Wiring Color
| Terminal Description
| Condition
| Specified Condition
|
r2-4 (OMIL) - r2-10 (BRGD)
| B - BR
| Outer rear view mirror indicator LH power source
| Outer rear view mirror indicator LH illuminated
| 2.5 to 7.5 V
|
Outer rear view mirror indicator LH blinking
| Alternating between 0 to 7.5 V
|
Outer rear view mirror indicator LH not illuminated
| Below 1 V
|
r2-5 (BRB) - r2-10 (BRGD)
| B - BR
| IG power source
| Engine switch off
| Below 1 V
|
Engine switch on (IG)
| 11 to 14 V
|
r2-10 (BRGD) - Body Ground
| BR - Body ground
| Ground
| Always
| Below 1 V
|
| BLIND SPOT MONITOR SENSOR RH (SLAVE) |
Terminal No.
(Symbol)
| Wiring Color
| Terminal Description
| Condition
| Specified Condition
|
r1-3 (BUZ) - r1-10 (BRGD)
| GR - BR
| RCTA buzzer (blind spot monitor buzzer) operation signal
| RCTA buzzer (blind spot monitor buzzer) not sounding
| 11 to 14 V
|
RCTA buzzer (blind spot monitor buzzer) sounding
| Alternating between 0 to 14 V
|
r1-4 (OMIR) - r1-10 (BRGD)
| G - BR
| Outer rear view mirror indicator RH power source
| Outer rear view mirror indicator RH illuminated
| 2.5 to 7.5 V
|
Outer rear view mirror indicator RH blinkig
| Alternating between 0 to 7.5 V
|
Outer rear view mirror indicator RH not illuminated
| Below 1 V
|
r1-5 (BRB) - r1-10 (BRGD)
| B - BR
| IG power source
| Engine switch off
| Below 1 V
|
Engine switch on (IG)
| 11 to 14 V
|
r1-10 (BRGD) - Body Ground
| BR - Body ground
| Ground
| Always
| Below 1 V
|
