  1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

  2. REMOVE DRIVING SUPPORT ECU ASSEMBLY

Driving Support Ecu -- Removal


HINT:
  1. Use the same procedure for the RHD and LHD.
  2. The following procedure is for the LHD.


1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
(Click here)


2. REMOVE DRIVING SUPPORT ECU ASSEMBLY
NOTICE:
Do not reuse the driving support ECU assembly if it has been dropped or subjected to a severe impact.


    Land Cruiser. Urj200, 202 Grj200 Vdj200

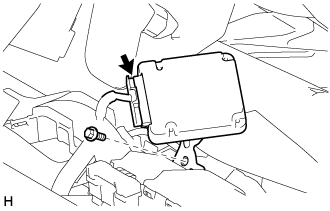

  1. Remove the bolt and driving support ECU assembly.

  1. Disconnect the connector.
