Power Window Regulator Motor (For Front Door) Inspection

Vehicle Exterior. Land Cruiser. Urj200, 202 Grj200 Vdj200
Window Glass. Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Models with Jam Protection Function on 4 Windows)

  2. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Models with Jam Protection Function on 4 Windows)

  3. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Models with Jam Protection Function on Driver Door Window Only)

  4. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Models with Jam Protection Function on Driver Door Window Only)

Power Window Regulator Motor (For Front Door) -- Inspection


HINT:
  1. Use the same procedure for RHD and LHD vehicles.
  2. The procedure listed below is for LHD vehicles.
  3. Use the same procedure for the RH and LH sides.
  4. The procedure listed below is for the LH side.


1. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Models with Jam Protection Function on 4 Windows)
NOTICE:
  1. Do not apply positive (+) battery voltage to any terminals, except terminal 2 (B), to avoid damaging the pulse sensor inside the motor.
  2. Perform initialization of the power window system after removing, inspecting or replacing the power window regulator motor assembly LH.


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Window Glass.Power Window Control System (For Models With Jam Protection Function On 4 Windows).Power Window Regulator Motor (For Front Door) Inspection

  1. Check that the motor gear rotates smoothly as follows.

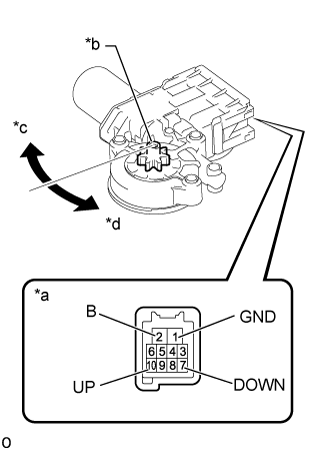

    Text in Illustration
    *a
    		Component without harness connected
    (Power Window Regulator Motor Assembly LH)
    *b
    		Motor Gear
    *c
    		Clockwise
    *d
    		Counterclockwise

    OK:

    Measurement Condition
    		Specified Condition
    1. Connect the positive (+) lead of the battery to terminal 2 (B) and the negative (-) lead to terminal 1 (GND), and hold for 3 sec. or more.
    2. While terminals 2 (B) and 1 (GND) are connected, connect the negative (-) lead of the battery to terminal 10 (UP).
    3. After disconnecting the negative (-) lead of the battery from terminal 10 (UP), connect terminal 10 (UP) to the negative (-) lead of the battery again within 1 sec.
    		Motor gear rotates clockwise (UP)
    1. Connect the positive (+) lead of the battery to terminal 2 (B) and the negative (-) lead to terminal 1 (GND), and hold for 3 sec. or more.
    2. While terminals 2 (B) and 1 (GND) are connected, connect the negative (-) lead of the battery to terminal 7 (DOWN).
    3. After disconnecting the negative (-) lead of the battery from terminal 7 (DOWN), connect terminal 7 (DOWN) to the negative (-) lead of the battery again within 1 sec.
    		Motor gear rotates counterclockwise (DOWN)
    If the result is not as specified, replace the power window regulator motor assembly LH


2. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Models with Jam Protection Function on 4 Windows)
NOTICE:
  1. Do not apply positive (+) battery voltage to any terminals, except terminal 2 (B), to avoid damaging the pulse sensor inside the motor.
  2. Perform initialization of the power window system after removing, inspecting or replacing the power window regulator motor assembly RH.


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Window Glass.Power Window Control System (For Models With Jam Protection Function On 4 Windows).Power Window Regulator Motor (For Front Door) Inspection

  1. Check that the motor gear rotates smoothly as follows.

    Text in Illustration
    *a
    		Component without harness connected
    (Power Window Regulator Motor Assembly RH)
    *b
    		Motor Gear
    *c
    		Clockwise
    *d
    		Counterclockwise

    OK:

    Measurement Condition
    		Specified Condition
    1. Connect the positive (+) lead of the battery to terminal 2 (B) and the negative (-) lead to terminal 1 (GND), and hold for 3 sec. or more.
    2. While terminals 2 (B) and 1 (GND) are connected, connect the negative (-) lead of the battery to terminal 10 (UP).
    3. After disconnecting the negative (-) lead of the battery from terminal 10 (UP), connect terminal 10 (UP) to the negative (-) lead of the battery again within 1 sec.
    		Motor gear rotates counterclockwise (UP)
    1. Connect the positive (+) lead of the battery to terminal 2 (B) and the negative (-) lead to terminal 1 (GND), and hold for 3 sec. or more.
    2. While terminals 2 (B) and 1 (GND) are connected, connect the negative (-) lead of the battery to terminal 7 (DOWN).
    3. After disconnecting the negative (-) lead of the battery from terminal 7 (DOWN), connect terminal 7 (DOWN) to the negative (-) lead of the battery again within 1 sec.
    		Motor gear rotates clockwise (DOWN)
    If the result is not as specified, replace the power window regulator motor assembly RH


3. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Models with Jam Protection Function on Driver Door Window Only)
NOTICE:
  1. Do not apply positive (+) battery voltage to any terminals, except terminal 2 (B), to avoid damaging the pulse sensor inside the motor.
  2. Perform initialization of the power window system after removing, inspecting or replacing the power window regulator motor assembly LH.


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Window Glass.Power Window Control System (For Models With Jam Protection Function On 4 Windows).Power Window Regulator Motor (For Front Door) Inspection

  1. Check that the motor gear rotates smoothly as follows.

    Text in Illustration
    *a
    		Component without harness connected
    (Power Window Regulator Motor Assembly LH)
    *b
    		Motor Gear
    *c
    		Clockwise
    *d
    		Counterclockwise

    OK:

    Measurement Condition
    		Specified Condition
    1. Connect the positive (+) lead of the battery to terminal 2 (B) and the negative (-) lead to terminal 1 (GND), and hold for 3 sec. or more.
    2. While terminals 2 (B) and 1 (GND) are connected, connect the negative (-) lead of the battery to terminal 10 (UP).
    3. After disconnecting the negative (-) lead of the battery from terminal 10 (UP), connect terminal 10 (UP) to the negative (-) lead of the battery again within 1 sec.
    		Motor gear rotates clockwise (UP)
    1. Connect the positive (+) lead of the battery to terminal 2 (B) and the negative (-) lead to terminal 1 (GND), and hold for 3 sec. or more.
    2. While terminals 2 (B) and 1 (GND) are connected, connect the negative (-) lead of the battery to terminal 7 (DOWN).
    3. After disconnecting the negative (-) lead of the battery from terminal 7 (DOWN), connect terminal 7 (DOWN) to the negative (-) lead of the battery again within 1 sec.
    		Motor gear rotates counterclockwise (DOWN)
    If the result is not as specified, replace the power window regulator motor assembly LH


4. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Models with Jam Protection Function on Driver Door Window Only)


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Window Glass.Power Window Control System (For Models With Jam Protection Function On 4 Windows).Power Window Regulator Motor (For Front Door) Inspection

  1. Check the operation of the regulator motor.

  1. Apply battery voltage to the regulator motor and check the operation of the regulator motor.

    OK:

    Measurement Condition
    		Specified Condition
    Battery positive (+) → Terminal 1
    Battery negative (-) → Terminal 2
    		Motor gear rotates clockwise
    Battery positive (+) → Terminal 2
    Battery negative (-) → Terminal 1
    		Motor gear rotates counterclockwise
    1. If the result is not as specified, replace the regulator motor assembly.
      Text in Illustration
      *1
      		Motor Gear
      *a
      		Component without harness connected
      (Front Power Window Regulator Motor Assembly RH)
      *b
      		Clockwise
      *c
      		Counterclockwise
