Steering. Land Cruiser. Urj200, 202 Grj200 Vdj200
Steering Column. Land Cruiser. Urj200, 202 Grj200 Vdj200
Tilt And Telescopic Manual Switch -- Removal |
| 1. PRECAUTION |
- NOTICE:
- After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Click here).
| 2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
Disable the AUTO TILT AWAY function by changing the customize parameter (Click here).
- NOTICE:
- Record the current customize parameter setting (whether the AUTO TILT AWAY function is enabled or disabled) in order to restore the current setting after finishing the operation.
- HINT:
- Performing the above operation causes the AUTO TILT AWAY function to be disabled when the engine switch is turned off.
Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
Turn the engine switch off and disconnect the cable from the negative (-) battery terminal.
- CAUTION:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- NOTICE:
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).
| 3. REMOVE LOWER STEERING COLUMN COVER |

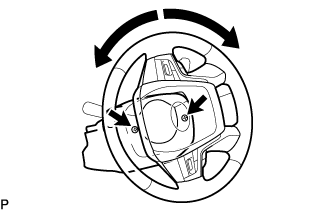

Remove the 2 screws.
- HINT:
- Turn the steering wheel to the right and left as necessary to remove the 2 screws.
 |

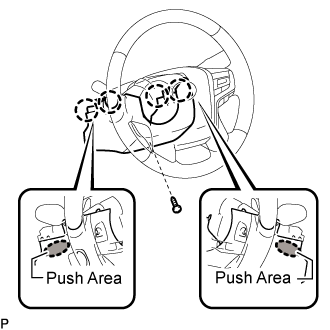

Remove the screw and while pressing the push area shown in the illustration to detach the 2 claws, slightly lower steering column cover.
 |
| 4. REMOVE TILT AND TELESCOPIC MANUAL SWITCH |
Disconnect the connector.
 |
Detach the claw and pull out the switch.
