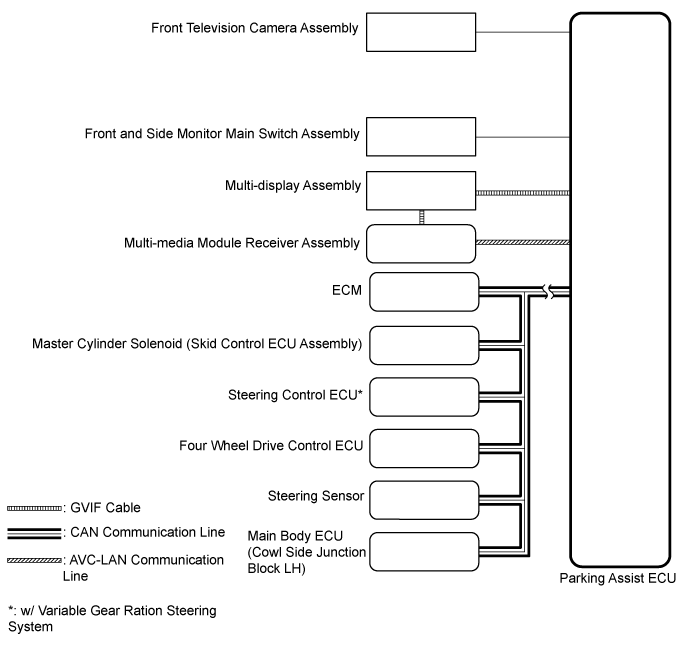

Wide View Front Monitor System -- System Diagram



Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Wide View Front Monitor System System Diagram


Communication Table
Sender ECU
Receiver ECU
Signal
Line
Multi-media Module Receiver Assembly
Parking Assist ECU
Vehicle angle data
AVC-LAN
Parking Assist ECU
Multi-display Assembly
Display
Digital communication cable
Steering Sensor
Parking Assist ECU
Steering angle
CAN
Steering Control ECU*
Parking Assist ECU
  1. VGRS relative angle
  2. Vehicle information
CAN
Master Cylinder Solenoid (Skid Control ECU Assembly)
Parking Assist ECU
  1. Inner brake information
  2. ABS ACT information
CAN
Four Wheel Drive Control ECU
Parking Assist ECU
L4 Condition signal
CAN
ECM
Parking Assist ECU
  1. Shift position information
  2. 2WD/4WD information
  3. Vehicle information
CAN
  1. *: w/ Variable Gear Ratio Steering System
