Wide View Front Monitor System System Description

This system has a front television camera assembly to display the front view of the vehicle on the multi-display assembly.

This system consists of the following components:

1. Parking assist ECU


2. Front television camera assembly


3. Multi-media module receiver assembly


4. Steering sensor


5. Steering control ECU*


6. Master cylinder solenoid (skid control ECU assembly)


7. Four wheel drive control ECU


8. ECM


9. Front and side monitor main switch assembly


10. Multi-display assembly


    1. *: w/ Variable Gear Ratio Steering System


This system is equipped with a self-diagnosis system, which is operated on a designated window that appears on the display panel, just as in the navigation system.

The parking assist ECU controls the system by using information from the following components.

1. *: w/ Variable Gear Ratio Steering System


The front and side monitor main switch ON signal is sent from the main switch to the parking assist ECU.
After receiving the front and side monitor main switch ON signal, the parking assist ECU switches the display signal for the multi-display assembly from the navigation system to the wide view front monitor system.

Screen display operation

1. After the display conditions are met when the wide view front and side monitor systems are normally functioning, if the screen is changed from the manual display mode or automatic display mode screen, the wide view front and side monitor screen (H4 mode) or wide view front monitor screen (L4 mode) is displayed as the initial screen.


   HINT:

   1. If the shift lever is not in R and the wide view front and side monitor screen is displayed, the course guideline display change switch and automatic display mode set/cancel switch are displayed and the following operations can be performed.

   2. For the course guideline display change switch, refer to the following procedures (Click here).

   3. Automatic display mode set/cancel switch



      Automatic mode display switch (Indicator in the button)	Display mode
      ON (Illuminated)	Automatic display mode
      OFF (Not illuminated)	Manual display mode

   4. The last mode screen is the screen that was displayed last when the screen was changed to the navigation screen, information setting screen, etc.


Display conditions for manual display mode

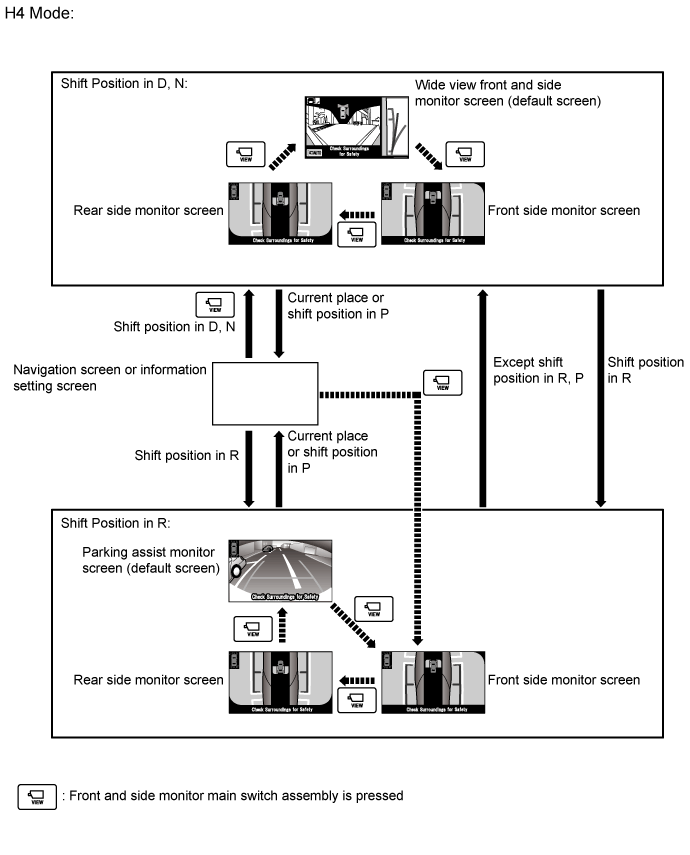

1. H4 mode:
   During manual display mode (shift lever in a position other than R), during engine switch on (IG) or engine startup (no DTCs are output), if the following conditions have been met, pressing the front and side monitor main switch will change the display mode as follows



   Automatic Mode Display Switch	Multi-display Screen	Shift Lever Position	Vehicle Speed	Screen (changes due to front and side monitor main switch assembly operation)
   OFF	Navigation screen or information setting screen	Other than R	12 km/h (7.5 mph) or less	Navigation screen or information setting screen → Wide view front and side monitor screen → Front side monitor screen → Rear side monitor screen → Wide view front and side monitor screen
   		R position	0 km/h (0 mph)	Navigation screen or information setting screen → Parking assist monitor screen → Wide view front and side monitor screen → Front side monitor screen → Rear side monitor screen → Parking assist monitor screen

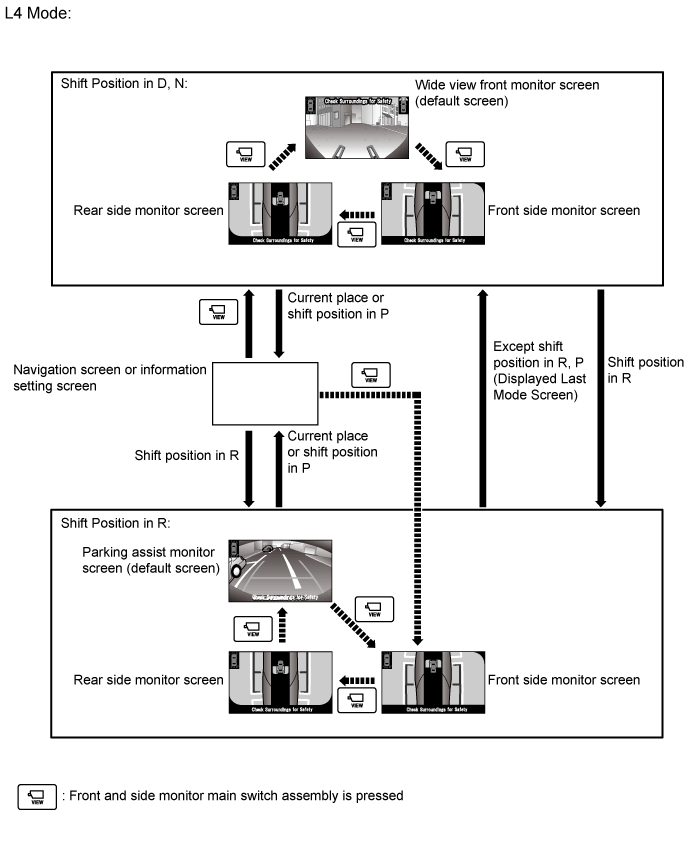

2. L4 mode:
   During manual display mode (shift lever in a position other than R), during engine switch on (IG) or engine startup (no DTCs are output), if the following conditions have been met, pressing the front and side monitor main switch will change the display mode as follows



   Automatic Mode Display Switch	Multi-display Screen	Shift Lever Position	Vehicle Speed	Screen (changes due to front and side monitor main switch assembly operation)
   OFF	Navigation screen or information setting screen	Other than R	12 km/h (7.5 mph) or less	Navigation screen or information setting screen → Wide view front monitor screen → Front side monitor screen → Rear side monitor screen → Wide view front monitor screen
   		R position	0 km/h (0 mph)	Navigation screen or information setting screen → Parking assist monitor screen → Wide view front and side monitor screen → Front side monitor screen → Rear side monitor screen → Parking assist monitor screen

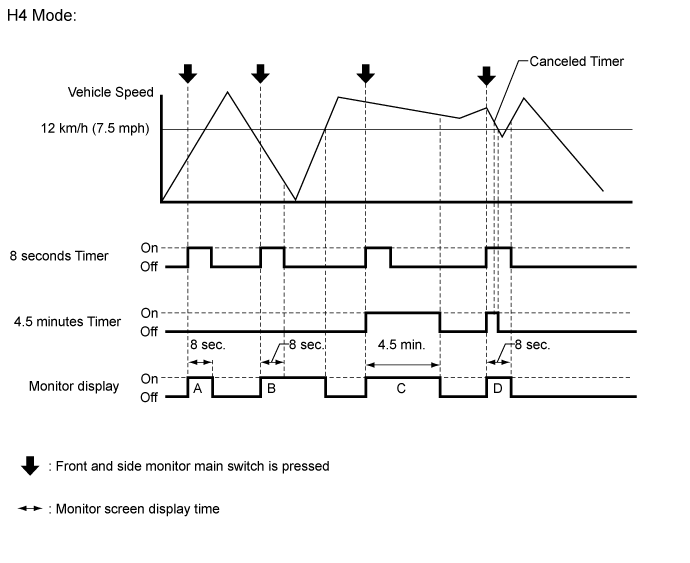

Screen display timer function

1. During manual display mode (when the shift lever is not in R), when the front and side monitor main switch is pressed and the following conditions are met, the wide view front and side monitor screen is displayed for a certain period of time even when the vehicle speed is more than 12 km/h (7.5 mph).








   Screen Display Time	Time when Front and Side Monitor Main Switch Assembly is Pressed	Change in Vehicle Speed	Timer Operation Time	Note
   A B	12 km/h (7.5 mph) or less	12 km/h (7.5 mph) or less	8 seconds	When the front and side monitor main switch assembly is pressed with the vehicle speed at 12 km/h (7.5 mph) or less, the camera screen is displayed for 8 seconds from the moment the switch is pressed. After this, if the vehicle speed increases to above 12 km/h (7.5 mph), the camera screen is not displayed.
   C	More than 12 km/h (7.5 mph)	More than 12 km/h (7.5 mph)	8 seconds or 4 minutes and 30 seconds	When the front and side monitor main switch assembly is pressed while the vehicle speed is more than 12 km/h (7.5 mph), the camera screen is displayed for 4 minutes and 30 seconds the moment the switch is pressed (when the vehicle speed is more than 12 km/h (7.5 mph) after 4 minutes and 30 seconds elapse from the time the switch is pressed).
   D	More than 12 km/h (7.5 mph)	More than 12 km/h (7.5 mph) → 12 km/h (7.5 mph) or less → More than 12 km/h (7.5 mph)	8 seconds or 4 minutes and 30 seconds	When the front and side monitor main switch assembly is pressed while the vehicle speed is more than 12 km/h (7.5 mph), the screen display timer operates and the camera screen is displayed. However, after the vehicle speed decreases to 12 km/h (7.5 mph) or less within 4 minutes and 30 seconds (after 8 seconds have elapsed), if the vehicle speed increases to more than 12 km/h (7.5 mph) again, the screen switches to the navigation or information setting screen. After the vehicle speed decreases to 12 km/h (7.5 mph) or less within 8 seconds, if the vehicle speed increases to more than 12 km/h (7.5 mph) again, the 4 minutes 30 seconds timer is canceled and the camera screen is displayed for 8 seconds the moment the front and side monitor main switch assembly is pressed.

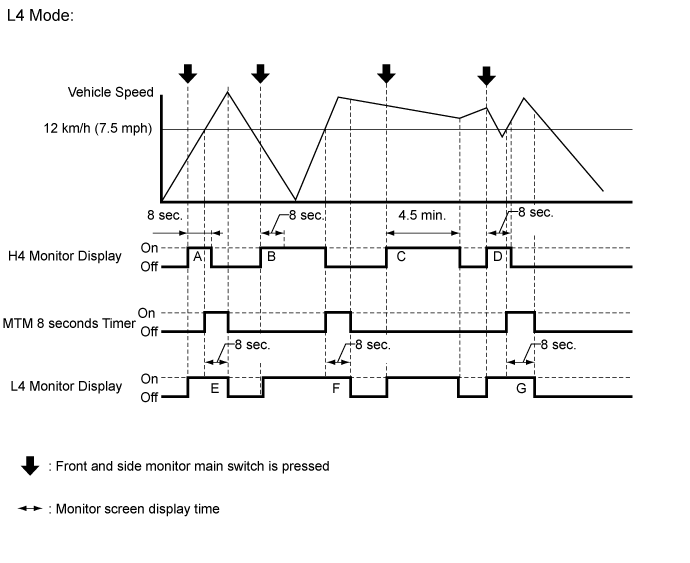

   Screen Display Time	Time when Front and Side Monitor Main Switch Assembly is Pressed	Change in Vehicle Speed	Timer Operation Time	Note
   A B	12 km/h (7.5 mph) or less	12 km/h (7.5 mph) or less	8 seconds	When the front and side monitor main switch assembly is pressed with the vehicle speed at 12 km/h (7.5 mph) or less, the camera screen is displayed for 8 seconds from the moment the switch is pressed. After this, if the vehicle speed increases to above 12 km/h (7.5 mph), the camera screen is not displayed.
   C	More than 12 km/h (7.5 mph)	More than 12 km/h (7.5 mph)	8 seconds or 4 minutes and 30 seconds	When the front and side monitor main switch assembly is pressed while the vehicle speed is more than 12 km/h (7.5 mph), the camera screen is displayed for 4 minutes and 30 seconds the moment the switch is pressed (when the vehicle speed is more than 12 km/h (7.5 mph) after 4 minutes and 30 seconds elapse from the time the switch is pressed).
   D	More than 12 km/h (7.5 mph)	More than 12 km/h (7.5 mph) → 12 km/h (7.5 mph) or less → More than 12 km/h (7.5 mph)	8 seconds or 4 minutes and 30 seconds	When the front and side monitor main switch assembly is pressed while the vehicle speed is more than 12 km/h (7.5 mph), the screen display timer operates and the camera screen is displayed. However, after the vehicle speed decreases to 12 km/h (7.5 mph) or less within 4 minutes and 30 seconds (after 8 seconds have elapsed), if the vehicle speed increases to more than 12 km/h (7.5 mph) again, the screen switches to the navigation or information setting screen. After the vehicle speed decreases to 12 km/h (7.5 mph) or less within 8 seconds, if the vehicle speed increases to more than 12 km/h (7.5 mph) again, the 4 minutes 30 seconds timer is canceled and the camera screen is displayed for 8 seconds the moment the front and side monitor main switch assembly is pressed.
   E F G	More than 12 km/h (7.5 mph)	More than 12 km/h (7.5 mph)	8 seconds	If the vehicle speed is more than 12 km/h (7.5 mph), the camera screen is displayed for 8 seconds. After that, the camera screen is not displayed. The timer is canceled the moment the vehicle speed decreases to below 12 km/h (7.5 mph) during the 8 second timer.

Display conditions for automatic display mode

1. In automatic display mode, the screen display is automatically displayed according to driving conditions when the following conditions are met and the wide view front and side monitor systems are normally operating.








   Vehicle Condition	Multi-display Assembly Display Screen	Shift Lever	Vehicle Speed	Display Screen
   Stopped → Driving	Navigation screen or information setting screen	Not in P or R	12 km/h (7.5 mph) or less	Navigation screen or information setting screen → Wide view front monitor and side monitor screen*
   Driving → Stopped		Not in P or R	10 km/h (6.2 mph) or less	Navigation screen or information setting screen → Wide view front monitor and side monitor screen*

   1. *:The conditions to change the screen after the display screen changes automatically are the same as in manual display mode.


Off-road turn assist function

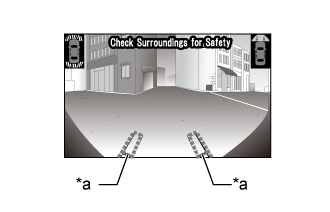

1. With the off-road turn assist function on, the path traveled is displayed as dotted lines on the front screen. In this state, the vehicle may not move exactly as the front lines indicate. (The lines indicate the direction the front wheels are turned. However, with the off-road assist function on, the vehicle turns using a difference in drive force between the left and right wheels.)


   Text in Illustration

   *a	Line Indicating Travel Path

The components of the wide view front monitor system communicate with each other through the AVC-LAN. If a short circuit or open circuit occurs in the AVC-LAN, communication is interrupted and the front monitor system will stop functioning.

This wide view front monitor system has a diagnostic function displayed in the display and navigation module display. This function enables the calibration (adjustment and confirmation) of the system (Click here).

The system can check the following items by using the intelligent tester.
