Television Camera (For Front) Removal

Audio Visual Telematics. Land Cruiser. Urj200, 202 Grj200 Vdj200
Park Assist Monitoring. Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

  2. REMOVE FRONT BUMPER WINCH COVER SUB-ASSEMBLY (w/ Winch)

  3. REMOVE RADIATOR GRILLE ASSEMBLY

  4. REMOVE FRONT TELEVISION CAMERA ASSEMBLY

Television Camera (For Front) -- Removal



1. REMOVE UPPER RADIATOR SUPPORT SEAL


  1. Remove the 7 clips and radiator support seal.


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Television Camera (For Front) Removal



2. REMOVE FRONT BUMPER WINCH COVER SUB-ASSEMBLY (w/ Winch)


3. REMOVE RADIATOR GRILLE ASSEMBLY


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Television Camera (For Front) Removal

  1. Put protective tape around the radiator grille assembly.

    Text in Illustration
    *1
    		Protective Tape

  1. Remove the 3 screws.

  1. Detach the 2 clips and 8 claws, and remove the radiator grille assembly.

  1. w/ Wide View Front Monitor System:

    1. Disconnect the connector.



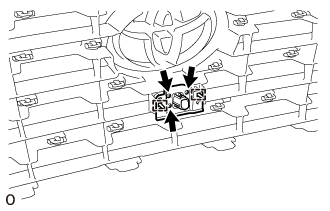

4. REMOVE FRONT TELEVISION CAMERA ASSEMBLY


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Remove the 3 screws.

  1. Detach the 2 guides and remove the front television camera assembly.
