Radio Receiver (W/O Stereo Component Amplifier) -- Removal

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Click here).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

3. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY

Land Cruiser. Urj200, 202 Grj200 Vdj200.Audio Video.Audio And Visual System (For Radio Receiver Type).Radio Receiver (W/O Stereo Component Amplifier) Removal

Put protective tape around the No. 1 speaker opening cover assembly.
Text in Illustration
*a
Protective Tape

Text in Illustration
*a	Protective Tape

Using a moulding remover A, detach the 8 clips and remove the No. 1 speaker opening cover assembly.

4. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

for Type A:
1. Put protective tape around the No. 3 instrument panel register assembly.
  Text in Illustration
  *a
  Protective Tape
2. Using moulding remover B, raise the No. 3 instrument panel register assembly.
3. Pull the No. 3 instrument panel register assembly by hand to detach the 7 claws and guide and remove the No. 3 instrument panel register assembly.

Text in Illustration
*a	Protective Tape

for Type B:
1. Put protective tape around the No. 3 instrument panel register assembly.
  Text in Illustration
  *a
  Protective Tape
2. Using moulding remover B, raise the No. 3 instrument panel register assembly.
3. Pull the No. 3 instrument panel register assembly by hand to detach the 6 claws and remove the No. 3 instrument panel register assembly.

Text in Illustration
*a	Protective Tape

5. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

for Type A:
1. Attach the guide and 7 claws to install the No. 4 instrument panel register assembly.

for Type B:
1. Attach the 6 claws to install the No. 4 instrument panel register assembly.

6. REMOVE NO. 1 CENTER INSTRUMENT CLUSTER FINISH PANEL

for Type A:
1. Detach the 8 claws and 3 clips.
2. Disconnect the connectors and remove the No. 1 center instrument cluster finish panel.

for Type B:
1. Detach the 10 claws.
2. Disconnect the connectors and remove the No. 1 center instrument cluster finish panel.

7. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

w/o Entry and Start System:
1. Remove the 2 screws and 2 bolts.
2. Disconnect the connectors and remove the radio receiver.

w/ Entry and Start System:
1. Remove the 2 screws and 2 bolts.
2. Disconnect the connectors and remove the radio receiver.

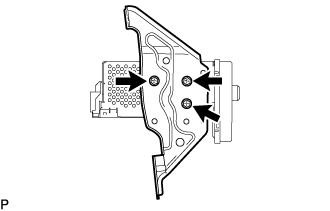

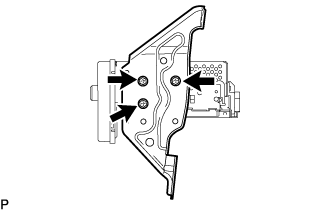

8. REMOVE NO. 1 RADIO BRACKET

w/o Entry and Start System:
1. Remove the 3 screws and bracket.

w/ Entry and Start System:
1. Remove the 3 screws and bracket.

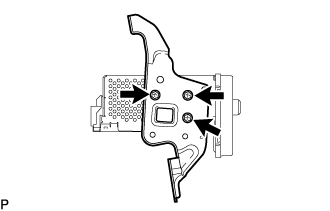

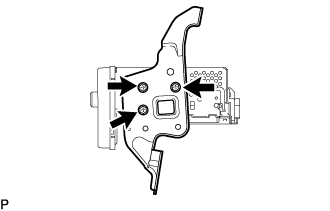

9. REMOVE NO. 2 RADIO BRACKET

w/o Entry and Start System:
1. Remove the 3 screws and bracket.

w/ Entry and Start System:
1. Remove the 3 screws and bracket.
