Multi-Media Interface Ecu Removal

Audio Visual Telematics. Land Cruiser. Urj200, 202 Grj200 Vdj200
Audio Video. Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. PRECAUTION

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  3. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)

  4. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)

  5. REMOVE INSTRUMENT SIDE PANEL RH (w/o Airbag Cut Off Switch)

  6. REMOVE INSTRUMENT SIDE PANEL RH (w/ Airbag Cut Off Switch)

  7. REMOVE FRONT DOOR SCUFF PLATE RH

  8. REMOVE COWL SIDE TRIM BOARD RH

  9. REMOVE FRONT FLOOR CARPET ASSEMBLY

  10. REMOVE MULTI-MEDIA INTERFACE ECU

  11. REMOVE NO. 1 MULTI-MEDIA INTERFACE BRACKET

  12. REMOVE NO. 2 MULTI-MEDIA INTERFACE BRACKET

Multi-Media Interface Ecu -- Removal



1. PRECAUTION
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Click here).


2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).


3. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)

  1. Remove the front seat assembly RH (Click here).



4. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)

  1. Remove the front seat assembly RH (Click here).



5. REMOVE INSTRUMENT SIDE PANEL RH (w/o Airbag Cut Off Switch)


Land Cruiser. Urj200, 202 Grj200 Vdj200.Audio Video.Audio And Visual System (For Radio Receiver Type).Multi-Media Interface Ecu Removal

  1. Place protective tape as shown in the illustration.

    Text in Illustration
    *1
    		Protective Tape

  1. Using a moulding remover, detach the 6 claws and remove the instrument side panel.



6. REMOVE INSTRUMENT SIDE PANEL RH (w/ Airbag Cut Off Switch)


Land Cruiser. Urj200, 202 Grj200 Vdj200.Audio Video.Audio And Visual System (For Radio Receiver Type).Multi-Media Interface Ecu Removal

  1. Place protective tape as shown in the illustration.

    Text in Illustration
    *1
    		Protective Tape

  1. Using a moulding remover, detach the 6 claws.

  1. Disconnect the connector and remove the instrument side panel.



7. REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.


8. REMOVE COWL SIDE TRIM BOARD RH


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Remove the cap nut.

  1. Detach the 2 clips and remove the cowl side trim board.



9. REMOVE FRONT FLOOR CARPET ASSEMBLY

  1. Pull back the carpet far enough so that the selector can be removed. For further details, refer to the removal procedure (Click here).



10. REMOVE MULTI-MEDIA INTERFACE ECU

  1. Disconnect the connectors.



    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Remove the 2 bolts and multi-media interface ECU.



11. REMOVE NO. 1 MULTI-MEDIA INTERFACE BRACKET


    Land Cruiser. Urj200, 202 Grj200 Vdj200

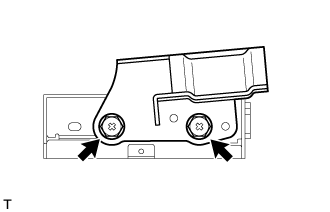

  1. Remove the 2 bolts and bracket.



12. REMOVE NO. 2 MULTI-MEDIA INTERFACE BRACKET


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Remove the 2 bolts and bracket.
