Stereo Component Amplifier Installation

Audio Visual Telematics. Land Cruiser. Urj200, 202 Grj200 Vdj200
Audio Video. Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. INSTALL NO. 2 AMPLIFIER BRACKET

  2. INSTALL NO. 1 AMPLIFIER BRACKET

  3. INSTALL AMPLIFIER COVER

  4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET

  5. INSTALL FRONT FLOOR CARPET ASSEMBLY

  6. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY (w/o Cool Box)

  7. INSTALL COOLING BOX ASSEMBLY (w/ Cool Box)

  8. INSTALL REAR NO. 2 SEAT PROTECTOR

  9. INSTALL REAR NO. 1 SEAT PROTECTOR

  10. INSTALL REAR AIR DUCT GUIDE

  11. INSTALL AIR DUCT PLUG

  12. INSTALL AIR HEATER GUIDE

  13. INSTALL NO. 2 AIR DUCT PLUG

  14. INSTALL REAR DOOR SCUFF PLATE LH

  15. INSTALL REAR DOOR SCUFF PLATE RH

  16. INSTALL REAR STEP COVER

  17. INSTALL COWL SIDE TRIM BOARD RH

  18. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Floor Under Cover)

  19. INSTALL COWL SIDE TRIM BOARD LH

  20. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Floor Under Cover)

  21. INSTALL FRONT DOOR SCUFF PLATE LH

  22. INSTALL FRONT DOOR SCUFF PLATE RH

  23. INSTALL INSTRUMENT SIDE PANEL RH (w/ Airbag Cut Off Switch)

  24. INSTALL INSTRUMENT SIDE PANEL RH (w/o Airbag Cut Off Switch)

  25. INSTALL INSTRUMENT SIDE PANEL LH

  26. INSTALL REAR NO. 1 SEAT ASSEMBLY RH

  27. INSTALL REAR NO. 3 SEAT CUSHION HINGE COVER

  28. INSTALL REAR NO. 1 SEAT CUSHION HINGE COVER

  29. INSTALL REAR NO. 4 SEAT CUSHION HINGE COVER

  30. INSTALL REAR NO. 2 SEAT CUSHION HINGE COVER

  31. INSTALL REAR NO. 1 SEAT ASSEMBLY LH

  32. INSTALL REAR NO. 4 SEAT CUSHION HINGE COVER

  33. INSTALL REAR NO. 2 SEAT CUSHION HINGE COVER

  34. INSTALL REAR NO. 5 SEAT CUSHION HINGE COVER

  35. INSTALL REAR NO. 3 SEAT CUSHION HINGE COVER

  36. INSTALL FRONT SEAT ASSEMBLY RH

  37. INSTALL FRONT SEAT ASSEMBLY LH

  38. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  39. CHECK SRS WARNING LIGHT

Stereo Component Amplifier -- Installation



1. INSTALL NO. 2 AMPLIFIER BRACKET


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Audio Video.Audio And Visual System (For Radio Receiver Type).Stereo Component Amplifier Installation

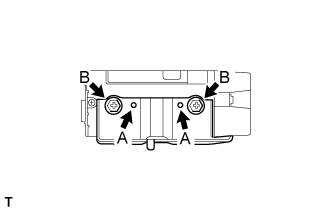

  1. Set the aligning protrusions of the bracket labeled A, into the holes of the amplifier.

  1. Install the bracket with the 2 screws labeled B.

    Torque:
    3.0 N*m{30 kgf*cm, 26 in.*lbf}


2. INSTALL NO. 1 AMPLIFIER BRACKET


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Audio Video.Audio And Visual System (For Radio Receiver Type).Stereo Component Amplifier Installation

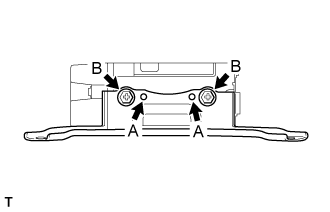

  1. Set the aligning protrusions of the bracket labeled A, into the holes of the amplifier.

  1. Install the bracket with the 2 screws labeled B.

    Torque:
    3.0 N*m{30 kgf*cm, 26 in.*lbf}


3. INSTALL AMPLIFIER COVER


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 3 clips to install the cover.



4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Install the amplifier with the 3 bolts.

    Torque:
    7.5 N*m{76 kgf*cm, 66 in.*lbf}

  1. Connect the 3 connectors.



5. INSTALL FRONT FLOOR CARPET ASSEMBLY


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Open the tail gate and back door, insert the carpet into the cabin from the rear, and install it to the floor.



  1. Attach the 2 clips and 8 claws.


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Audio Video.Audio And Visual System (For Radio Receiver Type).Stereo Component Amplifier Installation



6. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY (w/o Cool Box)

  1. Install the rear console box (Click here).



7. INSTALL COOLING BOX ASSEMBLY (w/ Cool Box)

  1. Install the cooling box assembly (Click here).



8. INSTALL REAR NO. 2 SEAT PROTECTOR


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the clip and 4 claws to install the protector.

    HINT:
    Use the same procedures to install the protector on the other side.


9. INSTALL REAR NO. 1 SEAT PROTECTOR


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the clip and 4 claws to install the protector.

    HINT:
    Use the same procedures to install the protector on the other side.


10. INSTALL REAR AIR DUCT GUIDE


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the claw to install the guide.

  1. Install the screw.

    HINT:
    Use the same procedures for both sides.


11. INSTALL AIR DUCT PLUG


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 2 claws to install the plug.

    HINT:
    Use the same procedures for both sides.


12. INSTALL AIR HEATER GUIDE


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Install the guide with the 2 screws.

    HINT:
    Use the same procedures for both sides.


13. INSTALL NO. 2 AIR DUCT PLUG


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 4 claws to install the 2 plugs.

    HINT:
    Use the same procedures for both sides.


14. INSTALL REAR DOOR SCUFF PLATE LH


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 3 claws and 4 clips to install the scuff plate.

  1. Install the screw.



15. INSTALL REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.


16. INSTALL REAR STEP COVER


Land Cruiser. Urj200, 202 Grj200 Vdj200
HINT:
Use the same procedure to install the step cover on the other side.

  1. Attach the 2 claws to install the step cover.



17. INSTALL COWL SIDE TRIM BOARD RH


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 2 clips to install the cowl side trim board.

  1. Install the cap nut.



18. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Floor Under Cover)


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 4 claws to install the No. 2 instrument panel under cover.



19. INSTALL COWL SIDE TRIM BOARD LH


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 2 clips to install the cowl side trim board.

  1. Install the cap nut.



20. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Floor Under Cover)


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Connect the connectors.

  1. Attach the 3 claws to install the No. 1 instrument panel under cover.

  1. Install the 2 screws.



21. INSTALL FRONT DOOR SCUFF PLATE LH


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 7 claws and 4 clips to install the scuff plate.



22. INSTALL FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedures described for the LH side.


23. INSTALL INSTRUMENT SIDE PANEL RH (w/ Airbag Cut Off Switch)


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Connect the connector.

  1. Attach the 6 claws to install the instrument side panel.



24. INSTALL INSTRUMENT SIDE PANEL RH (w/o Airbag Cut Off Switch)


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 6 claws to install the instrument side panel.



25. INSTALL INSTRUMENT SIDE PANEL LH


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 6 claws to install the instrument side panel.



26. INSTALL REAR NO. 1 SEAT ASSEMBLY RH


Land Cruiser. Urj200, 202 Grj200 Vdj200.Audio Video.Audio And Visual System (For Radio Receiver Type).Stereo Component Amplifier Installation

  1. Temporarily install the seat assembly with the 4 bolts.

    NOTICE:
    Be careful not to damage the vehicle body.

  1. Tighten the bolts in the order shown in the illustration.

    Torque:
    37 N*m{377 kgf*cm, 27 ft.*lbf}


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. w/ Rear Seat Side Airbag:
    Connect the connector.

  1. w/ Seat Heater System:
    Connect the connector.



27. INSTALL REAR NO. 3 SEAT CUSHION HINGE COVER


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 2 clips and 2 claws to install the cover.



28. INSTALL REAR NO. 1 SEAT CUSHION HINGE COVER


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 2 clips and 2 claws to install the cover.



29. INSTALL REAR NO. 4 SEAT CUSHION HINGE COVER

  1. Return the seat to the upright position.



    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 7 claws to install the cover.



30. INSTALL REAR NO. 2 SEAT CUSHION HINGE COVER


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 6 claws to install the cover.



31. INSTALL REAR NO. 1 SEAT ASSEMBLY LH


Land Cruiser. Urj200, 202 Grj200 Vdj200.Audio Video.Audio And Visual System (For Radio Receiver Type).Stereo Component Amplifier Installation

  1. Temporarily install the seat assembly with the 4 bolts.

    NOTICE:
    Be careful not to damage the vehicle body.

  1. Tighten the bolts in the order shown in the illustration.

    Torque:
    37 N*m{377 kgf*cm, 27 ft.*lbf}


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. w/ Rear Seat Side Airbag:
    Connect the connector.

  1. w/ Seat Heater System:
    Connect the connector.



32. INSTALL REAR NO. 4 SEAT CUSHION HINGE COVER


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 2 clips and 2 claws to install the cover.



33. INSTALL REAR NO. 2 SEAT CUSHION HINGE COVER


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 2 clips and 2 claws to install the cover.



34. INSTALL REAR NO. 5 SEAT CUSHION HINGE COVER

  1. Return the seat to the upright position.



    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 7 claws to install the cover.



35. INSTALL REAR NO. 3 SEAT CUSHION HINGE COVER


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 6 claws to install the cover.



36. INSTALL FRONT SEAT ASSEMBLY RH

  1. for Manual Seat:
    Install the front seat assembly RH (Click here).

  1. for Power Seat:
    Install the front seat assembly RH (Click here).

    HINT:
    Use the same procedures described for the LH side.


37. INSTALL FRONT SEAT ASSEMBLY LH

  1. for Manual Seat:
    Install the front seat assembly LH (Click here).

  1. for Power Seat:
    Install the front seat assembly LH (Click here).



38. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).


39. CHECK SRS WARNING LIGHT

  1. Check the SRS warning light (Click here).
