  1. INSPECT STEERING WHEEL FREE PLAY

Steering System -- On-Vehicle Inspection



1. INSPECT STEERING WHEEL FREE PLAY

  1. Stop the vehicle and align the tires facing straight ahead.



    Land Cruiser. Urj200, 202 Grj200 Vdj200.Steering Column.Power Tilt And Power Telescopic Steering Column System.Steering System On-Vehicle Inspection

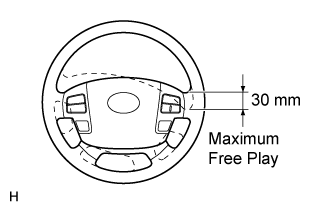

  1. Gently turn the steering wheel right and left by hand, and check the steering wheel free play.

    Maximum free play:
    30 mm (1.18 in.)
    If the free play is more than the maximum, check the steering column, steering intermediate shaft, steering sliding yoke, and steering gear.
