Parking Assist Ecu Installation

Audio Visual Telematics. Land Cruiser. Urj200, 202 Grj200 Vdj200
Park Assist Monitoring. Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. INSTALL PARKING ASSIST ECU

  2. INSTALL CLEARANCE WARNING ECU

  3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Parking Assist Ecu -- Installation


HINT:
  1. Use the same procedure for RHD and LHD vehicles.
  2. The procedure listed below is for LHD vehicles.


1. INSTALL PARKING ASSIST ECU


    Land Cruiser. Urj200, 202 Grj200 Vdj200

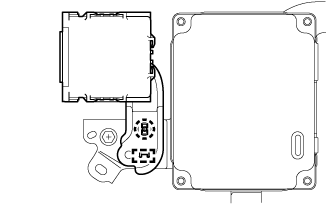

  1. Connect the connector.

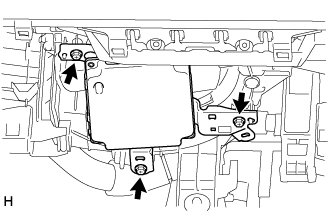

  1. Install the parking assist ECU to the blower unit with the 3 screws.

    NOTICE:
    1. Avoid any impact to the parking assist ECU.
    2. Do not drop the ECU. If it is dropped, replace it with a new one.


2. INSTALL CLEARANCE WARNING ECU


  1. w/o Multi-terrain Monitor:

    NOTICE:
    1. Avoid any impact to the clearance warning ECU.
    2. Do not drop the ECU. If it is dropped, replace it with a new one.

    1. Connect the connector.



      2. Land Cruiser. Urj200, 202 Grj200 Vdj200

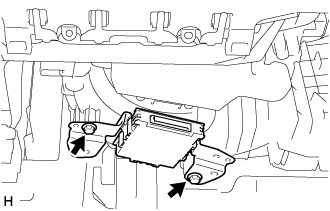

    2. Install the clearance warning ECU to the blower unit with the 2 screws.



  1. w/ Multi-terrain Monitor:

    1. Connect the connector.



      2. Land Cruiser. Urj200, 202 Grj200 Vdj200

    2. Attach the claw, guide to install the clearance warning ECU.

    3. Install the 2 screws.



3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Connect the connector.

  1. Attach the 3 guides.

  1. Attach the 4 claws to install the No. 2 instrument panel under cover sub-assembly.
