Clearance Warning Buzzer Installation

Audio Visual Telematics. Land Cruiser. Urj200, 202 Grj200 Vdj200
Park Assist Monitoring. Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. INSTALL NO. 1 CLEARANCE WARNING BUZZER

  2. INSTALL NO. 1 SWITCH HOLE BASE

  3. INSTALL NO. 1 LOWER INSTRUMENT PANEL FINISH PANEL

  4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Floor Under Cover)

  5. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

  6. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH

  7. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION

  8. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

  9. INSTALL INSTRUMENT SIDE PANEL LH

Clearance Warning Buzzer -- Installation


HINT:
  1. Use the same procedure for RHD and LHD vehicles.
  2. The procedure listed below is for LHD vehicles.


1. INSTALL NO. 1 CLEARANCE WARNING BUZZER


Land Cruiser. Urj200, 202 Grj200 Vdj200

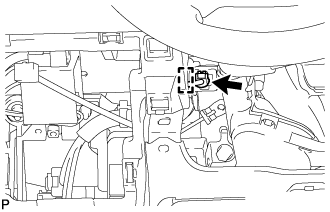

  1. Attach the clip to install the No. 1 clearance warning buzzer.

  1. Connect the connector.



2. INSTALL NO. 1 SWITCH HOLE BASE


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Connect the connectors.

  1. Attach the 4 claws to install the No. 1 switch hole base.



3. INSTALL NO. 1 LOWER INSTRUMENT PANEL FINISH PANEL

  1. Connect the connectors.



    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. for Automatic Air Conditioning System:

    1. Attach the 2 claws to install the room temperature sensor.



    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 2 claws to connect the 2 control cables.



  1. w/ Driver Side Knee Airbag:

    1. Attach the 16 claws to install the lower No. 1 instrument panel finish panel.



    2. Install the 2 bolts.


      Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Clearance Warning Buzzer Installation



  1. w/o Driver Side Knee Airbag:

    1. Attach the 9 claws to install the lower No. 1 instrument panel finish panel.



    2. Install the 2 bolts.


      Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Clearance Warning Buzzer Installation



    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 2 claws to close the hole cover.



4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Floor Under Cover)


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Connect the connectors.

  1. Attach the 3 claws to install the No. 1 instrument panel under cover.

  1. Install the 2 screws.



5. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH


  1. Attach the 2 claws to install the No. 2 instrument cluster finish panel garnish.


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Clearance Warning Buzzer Installation


    Text in Illustration
    *A
    		w/ Entry and Start System
    		*B
    		w/o Entry and Start System


6. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Connect the connectors and attach the 2 clamps.

  1. Attach the 8 claws to install the lower instrument panel pad sub-assembly.

  1. Install the clip and screw.



7. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 7 claws to install the No. 2 instrument panel finish panel cushion.



8. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 3 claws to install the No. 1 instrument cluster finish panel garnish.



9. INSTALL INSTRUMENT SIDE PANEL LH


Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Attach the 6 claws to install the instrument side panel.
