Radiator Grille Disassembly

Vehicle Exterior. Land Cruiser. Urj200, 202 Grj200 Vdj200
Exterior Panels Trim. Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

  2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Multi-terrain Monitor)

  3. REMOVE UPPER RADIATOR SEAL

  4. REMOVE RADIATOR GRILLE EMBLEM

Radiator Grille -- Disassembly



1. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)


    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Disconnect the connector.



    Land Cruiser. Urj200, 202 Grj200 Vdj200.Exterior Panels Trim.Front Bumper (For Standard).Radiator Grille Disassembly

  1. Remove the 2 screws and 2 bolts.

    Text in Illustration
    *a
    		Bolt
    *b
    		Screw

  1. Detach the 2 guides and remove the millimeter wave radar sensor assembly.



2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Multi-terrain Monitor)

  1. Disconnect the connector.



    Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. Remove the 2 screws.

  1. Detach the 2 guides and remove the front television camera assembly.



3. REMOVE UPPER RADIATOR SEAL


    Land Cruiser. Urj200, 202 Grj200 Vdj200

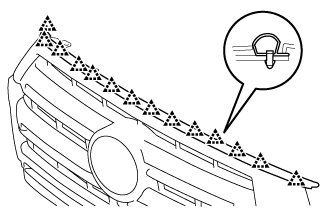

  1. Detach the 14 clips and remove the upper radiator seal.



4. REMOVE RADIATOR GRILLE EMBLEM


    Land Cruiser. Urj200, 202 Grj200 Vdj200

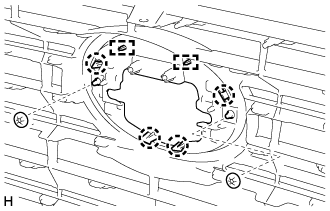

  1. Remove the 2 spring nuts.

  1. Detach the 4 claws, 2 guides and remove the radiator grille emblem.
