Multi-Terrain Monitor Switch Removal

Put protective tape around the instrument side panel LH.

Using a moulding remover A, detach the 6 claws and remove the instrument side panel LH.

Put protective tape around the No. 1 instrument cluster finish panel garnish.

Using a moulding remover A, detach the 3 claws and remove the No. 1 instrument cluster finish panel garnish.

for Type A:

1. Put protective tape around the No. 2 instrument panel finish panel cushion.


   Text in Illustration

   *a	Protective Tape

2. Using a moulding remover B, detach the 4 claws and 3 clips and remove the No. 2 instrument panel finish panel cushion.


for Type B:

1. Put protective tape around the No. 2 instrument panel finish panel cushion.


   Text in Illustration

   *a	Protective Tape

2. Using a moulding remover, detach the 7 claws and remove the No. 2 instrument panel finish panel cushion.


for Type A:

1. Put protective tape around the lower instrument panel pad sub-assembly LH.


   Text in Illustration

   *a	Protective Tape

2. Remove the clip and screw.






3. Detach the 11 claws and guide.


4. Disconnect the connector and detach the clamps and remove the lower instrument panel pad sub-assembly LH.


for Type B:

1. Put protective tape around the lower instrument panel pad sub-assembly LH.


   Text in Illustration

   *a	Protective Tape

2. Remove the clip and screw.






3. Detach the 8 claws and 2 guides and remove the lower instrument panel pad sub-assembly LH.


Put protective tape around the No. 2 instrument cluster finish panel garnish.

Using a moulding remover A, detach the 2 claws and remove the No. 2 instrument cluster finish panel garnish.

Put protective tape around the No. 2 instrument cluster finish panel sub-assembly.

Detach the 9 claws.

Disconnect the connectors and remove the No. 2 instrument cluster finish panel sub-assembly.

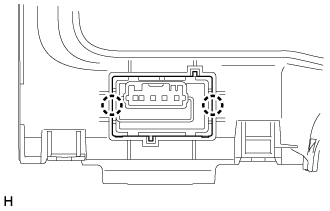

Detach the 2 claws and remove the main switch assembly (multi-terrain monitor switch).
