Parking Assist Monitor System (W/O Side Monitor System) System Diagram

Audio Visual Telematics. Land Cruiser. Urj200, 202 Grj200 Vdj200
Park Assist Monitoring. Land Cruiser. Urj200, 202 Grj200 Vdj200

Parking Assist Monitor System (W/O Side Monitor System) -- System Diagram

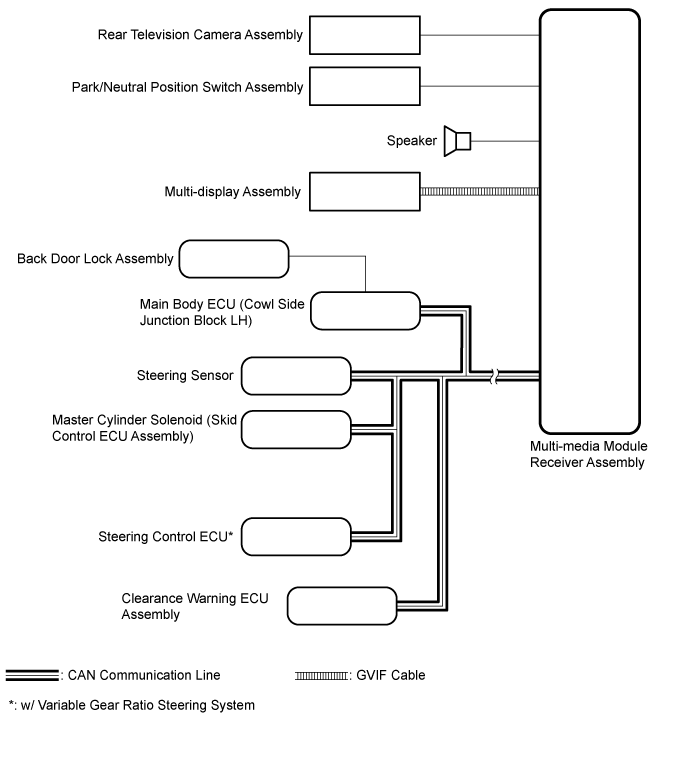

Land Cruiser. Urj200, 202 Grj200 Vdj200.Park Assist Monitoring.Toyota Parking Assist-Sensor System.Parking Assist Monitor System (W/O Side Monitor System) System Diagram


Communication Table
Sender
Receiver
Signal
Line
Multi-media Module Receiver Assembly
Multi-display Assembly
Display
GVIF cable
Clearance Warning ECU Assembly
Multi-media Module Receiver Assembly
Clearance sonar detection information
CAN
Steering Sensor
Multi-media Module Receiver Assembly
  1. Steering angle
  2. VGRS setting information*
CAN
Brake Master Cylinder Solenoid (Skid Control ECU Assembly)
Multi-media Module Receiver Assembly
Vehicle speed (skid control ECU identification information)
CAN
Steering Control ECU*
Multi-media Module Receiver Assembly
VGRS relative angle
CAN
Main Body ECU (Cowl Side Junction Block LH)
Multi-media Module Receiver Assembly
  1. Vehicle information
  2. Luggage compartment door courtesy light switch
CAN
  1. *: w/ Variable Gear Ratio Steering System
