Purge Valve Removal

Engine Hybrid System. Land Cruiser. Urj200, 202 Grj200 Vdj200
3Ur-Fe Emission Control. Land Cruiser. Urj200, 202 Grj200 Vdj200

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

  2. DISCONNECT PURGE LINE HOSE

  3. REMOVE PURGE VSV

Purge Valve -- Removal



1. REMOVE V-BANK COVER SUB-ASSEMBLY


    Land Cruiser. Urj200, 202 Grj200 Vdj200.3Ur-Fe Emission Control.Emission Control System.Purge Valve Removal

  1. Raise the front of the V-bank cover to detach the 3 pins. Then remove the 2 V-bank cover hooks from the bracket, and remove the V-bank cover.

    Text in Illustration
    *1
    		Bracket
    *2
    		Hook
    *3
    		Pin
    *4
    		Grommet


2. DISCONNECT PURGE LINE HOSE

  1. Disconnect the 2 purge line hoses.



3. REMOVE PURGE VSV


    Land Cruiser. Urj200, 202 Grj200 Vdj200

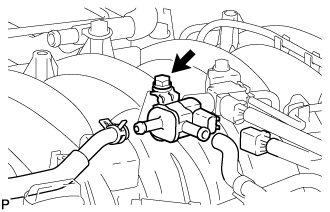

  1. Disconnect the purge VSV connector.

  1. Remove the bolt and purge VSV.
