DTC C1A4A Skid Control Buzzer Circuit


DESCRIPTION

Based on dynamic radar cruise control system operation, the driving support ECU assembly provides warnings to the driver by sounding the pre-crash safety city buzzer.
DTC C1A4A is stored when a malfunction is detected in the pre-crash safety city buzzer circuit.

DTC No.
DTC Detection Condition
Trouble Area
C1A4A
While the vehicle speed is 5 km/h (3 mph) or more and the dynamic radar cruise control system is operating, the driving support ECU assembly detects a malfunction in the pre-crash safety city buzzer circuit for 0.4 seconds or more.
  1. Pre-crash safety city buzzer
  2. Driving support ECU assembly
  3. Harness or connector

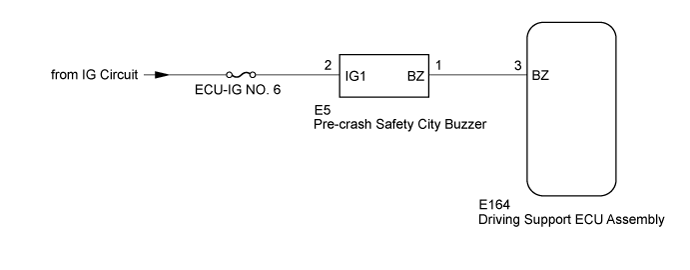

WIRING DIAGRAM


Land Cruiser. Urj200, 202 Grj200 Vdj200.Cruise Control.Cruise Control System. Dtc C1A4A Skid Control Buzzer Circuit


INSPECTION PROCEDURE

NOTICE:
  1. Inspect the fuses for circuits related to this system before performing the following procedure.
  2. When replacing the driving support ECU assembly, always replace it with a new one. If a driving support ECU assembly which was installed to another vehicle is used, the information stored in the driving support ECU assembly will not match the information from the vehicle. As a result, a DTC may be stored.
1.PERFORM ACTIVE TEST USING GTS (RADAR CRUISE APPROACH ALARM BUZZER)

  1. Connect the GTS to the DLC3.

  1. Turn the engine switch on (IG).

  1. Turn the GTS on.

  1. Enter the following menus: Powertrain / Radar Cruise2 / Active Test.

  1. Perform the Active Test according to the display on the GTS.

    Pre-crash safety city buzzer (approach sound)
    Tester Display
    		Test Part
    		Control Range
    		Diagnostic Note
    Radar Cruise Approach Alarm Buzzer
    		Pre-crash safety city buzzer
    		ON or OFF
    		Buzzer can be heard
    OK:
    Pre-crash safety city buzzer sounds.


NG
Go to step 3
OK


2.CHECK FOR DTCs (RADAR CRUISE2)

  1. Connect the GTS to the DLC3.

  1. Turn the engine switch on (IG).

  1. Clear the DTCs (Click here).

  1. Make sure that the DTC detection conditions are met.

    HINT:
    If the detection conditions are not met, the system cannot detect the malfunction.
    1. Turn the engine switch on (IG).
    2. Turn the dynamic radar cruise control system on using the cruise control main switch (ON/OFF).
    3. Drive the vehicle at 5 km/h (3 mph) or more for 1 second or more.

  1. Enter the following menus: Powertrain / Radar Cruise2 / Trouble Codes.

  1. Check for DTCs.

    Result:
    Result
    		Proceed to
    DTC C1A4A is output
    		A
    DTC C1A4A is not output
    		B


B
USE SIMULATION METHOD TO CHECK (Click here)
A

REPLACE DRIVING SUPPORT ECU ASSEMBLY (Click here)

3.CHECK TERMINAL VOLTAGE

  1. Disconnect the E5 pre-crash safety city buzzer connector.



    Land Cruiser. Urj200, 202 Grj200 Vdj200.Cruise Control.Cruise Control System. Dtc C1A4A Skid Control Buzzer Circuit

  1. Measure the voltage according to the value(s) in the table below.

    Standard Voltage:
    Tester Connection
    		Condition
    		Specified Condition
    E5-2 (IG1) - Body ground
    		Engine switch on (IG)
    		11 to 14 V
    E5-2 (IG1) - Body ground
    		Engine switch off
    		Below 1 V

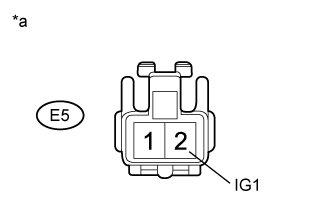

    Text in Illustration
    *a
    		Front view of wire harness connector
    (to Pre-crash Safety City Buzzer)


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


4.INSPECT PRECRASH SAFETY CITY BUZZER (UNIT INSPECTION)

  1. Remove the pre-crash safety city buzzer (Click here).

  1. Inspect the pre-crash safety city buzzer (Click here).

    Result:
    Result
    		Proceed to
    Pre-crash safety city buzzer is normal.
    		A
    Pre-crash safety city buzzer is abnormal.
    		B


B
REPLACE PRECRASH SAFETY CITY BUZZER (Click here)
A


5.CHECK HARNESS AND CONNECTOR (PRE-CRASH SAFETY CITY BUZZER - DRIVING SUPPORT ECU ASSEMBLY)

  1. Disconnect the E5 pre-crash safety city buzzer connector.

  1. Disconnect the E164 driving support ECU assembly connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    E5-1 (BZ) - E164-3 (BZ)
    		Always
    		Below 1 Ω
    E5-1 (BZ) or E164-3 (BZ) - Body ground
    		Always
    		10 kΩ or higher


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE DRIVING SUPPORT ECU ASSEMBLY (Click here)
