DTC B2289 Key Collation Waiting Time Over


DESCRIPTION

This DTC is stored when there is a LIN communication problem between the main body ECU and certification ECU (smart key ECU assembly) or when there is a problem in the engine immobiliser system.

DTC Code
Detection Condition
Trouble Area
B2289
When either of the following conditions is met:
  1. Communication or the communication line is abnormal among the main body ECU, certification ECU (smart key ECU assembly), steering lock ECU and ID code box (immobiliser code ECU).
  2. The immobiliser system malfunctions.
  1. Main body ECU
  2. Engine switch
  3. Certification ECU (smart key ECU assembly)
  4. Key
  5. Engine immobiliser system
  6. Harness or connector

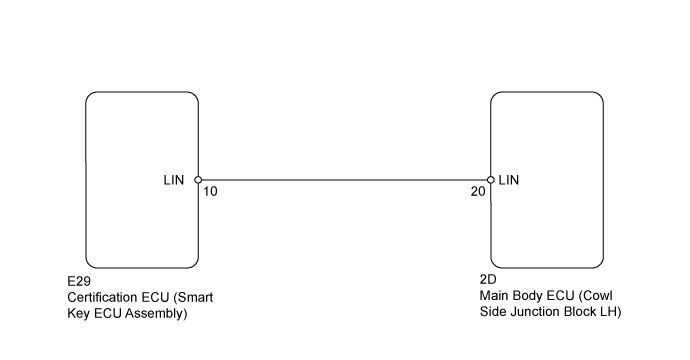

WIRING DIAGRAM


Land Cruiser. Urj200, 202 Grj200 Vdj200.Theft Deterrent Keyless Entry.Entry And Start System (For Entry Function). Dtc B2289 Key Collation Waiting Time Over


INSPECTION PROCEDURE

1.CHECK WHETHER DTC OUTPUT RECURS

  1. Clear the DTCs (Click here).

  1. Check whether DTC B2289 is output.

    Result
    Result
    		Proceed to
    DTC B2289 output
    		A
    No DTC output
    		B


B
USE SIMULATION METHOD TO CHECK (Click here)
A


2.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

Land Cruiser. Urj200, 202 Grj200 Vdj200.Theft Deterrent Keyless Entry.Entry And Start System (For Entry Function). Dtc B2289 Key Collation Waiting Time Over

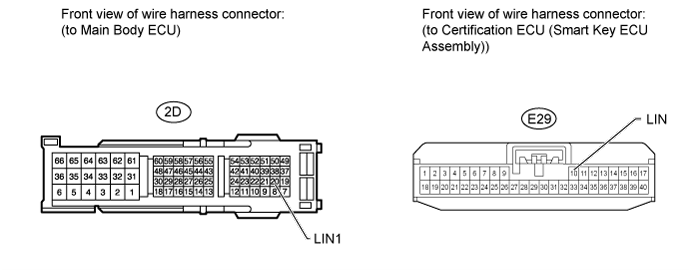

  1. Disconnect the 2D main body ECU connector.

  1. Disconnect the E29 certification ECU (smart key ECU assembly) connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    2D-20 (LIN1) - E29-10 (LIN)
    		Always
    		Below 1 Ω
    2D-20 (LIN) or E29-10 (LIN) - Body ground
    		Always
    		10 kΩ or higher


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


3.REPLACE MAIN BODY ECU

  1. Temporarily replace the main body ECU with a new or normally functioning one.

  1. Check whether DTC B2289 is output.

    OK:
    No DTC is output.


NG
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
OK

END
