Steering Lock System Power Source Circuit

Steering. Land Cruiser. Urj200, 202 Grj200 Vdj200
Steering Column. Land Cruiser. Urj200, 202 Grj200 Vdj200

DESCRIPTION

WIRING DIAGRAM

INSPECTION PROCEDURE

INSPECT FUSE (STR LOCK)

CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - BATTERY)

CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - BODY GROUND)

STEERING LOCK SYSTEM - Power Source Circuit


DESCRIPTION

This circuit supplies power source voltage from the battery to terminal B of the steering lock ECU.
The diagnosis information of the steering lock ECU is transmitted to the intelligent tester via the certification ECU (smart key ECU assembly) as the steering lock ECU is not connected to the CAN communication system.

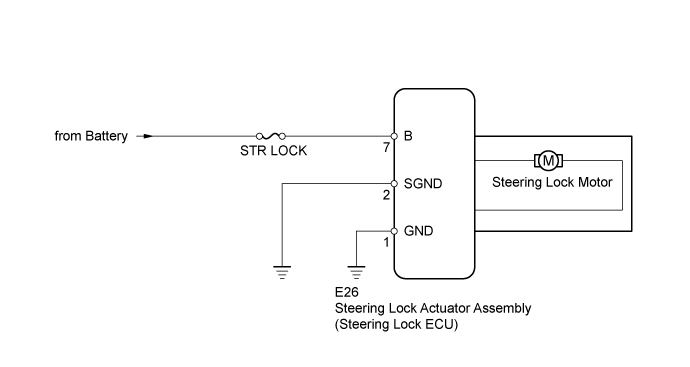

WIRING DIAGRAM


Land Cruiser. Urj200, 202 Grj200 Vdj200.Steering Column.Power Tilt And Power Telescopic Steering Column System.Steering Lock System Power Source Circuit


INSPECTION PROCEDURE

HINT:
When the engine switch is off, the main body ECU may occasionally go into a non-active state called sleep mode. Therefore, before proceeding with the inspection, it is necessary to perform the following steps to wake up the ECU:
With the engine switch off, open the driver door. Then (with the engine switch still off) open and close any door several times at 1.5 second intervals.
1.INSPECT FUSE (STR LOCK)

  1. Remove the STR LOCK fuse from the engine room relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    STR LOCK fuse
    		Always
    		Below 1 Ω


NG
REPLACE FUSE
OK


2.CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - BATTERY)
Land Cruiser. Urj200, 202 Grj200 Vdj200.Steering Column.Power Tilt And Power Telescopic Steering Column System.Steering Lock System Power Source Circuit

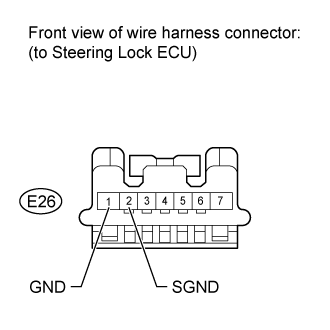

  1. Disconnect the E26 steering lock ECU connector.

  1. Measure the voltage according to the value(s) in the table below.

    Standard Voltage:
    Tester Connection
    		Condition
    		Specified Condition
    E26-7 (B) - Body ground
    		Always
    		11 to 14 V


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


3.CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - BODY GROUND)
Land Cruiser. Urj200, 202 Grj200 Vdj200.Steering Column.Power Tilt And Power Telescopic Steering Column System.Steering Lock System Power Source Circuit

  1. Disconnect the E26 steering lock ECU connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    Tester Connection
    		Condition
    		Specified Condition
    E26-1 (GND) - Body ground
    		Always
    		Below 1 Ω
    E26-2 (SGND) - Body ground
    		Always
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

GO TO STEERING LOCK SYSTEM (PROBLEM SYMPTOMS TABLE) (Click here)
