  1. TERMINAL INSPECTION

Steering Lock System -- Terminals Of Ecu



TERMINAL INSPECTION

Land Cruiser. Urj200, 202 Grj200 Vdj200.Steering Column.Power Tilt And Power Telescopic Steering Column System.Steering Lock System Terminals Of Ecu



  1. Measure the voltage and resistance according to the value(s) in the table below.

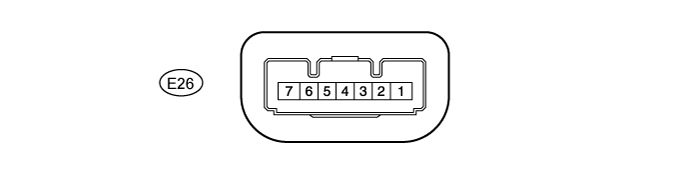

    Terminal No. (Symbol)
    		Input/Output
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    		Related Data List Item
    E26-1 (GND) - Body ground
    		-
    		W-B - Body ground
    		Ground
    		Always
    		Below 1 Ω
    		-
    E26-3 (IGE) - E26-1 (GND)
    		Input
    		W - W-B
    		Steering lock motor activation command signal (motor activation command signal sent from certification ECU (smart key ECU assembly))
    		Any door opened when conditions below met, and then steering lock motor activated:
    1. Shift lever in P
    2. Steering lock unlocked in advance by carrying key and turning engine switch on (IG)
    3. After above conditions met, engine switch turned off
    		Pulse generation (see waveform)
    Entry&Start
    1. Power Supply Short
    2. Unlock Request Receive
    3. Lock Request Receive
    E26-4 (SLP1) - E26-1 (GND)
    		Output
    		R - W-B
    		Steering lock bar position signal (output signal from steering unlock sensor)
    		Steering locked → unlocked
    		11 to 14 V → Below 1.2 V
    Entry&Start
    1. Push Start Error
    2. Sensor Value
    E26-5 (LIN) - E26-1 (GND)
    		Input/Output
    		V - W-B
    		LIN communication line
    		-
    		-
    Entry&Start
    1. Steering Lock Start Cond
    E26-6 (IG2) - E26-1 (GND)
    		Input
    		P - W-B
    		Power source mode signal (IG2 power supply input for entire steering lock actuator assembly)
    		Engine switch off → engine switch on (IG)
    		Below 1 V → 11 to 14 V
    Entry&Start
    1. Ignition Switch
    E26-7 (B) - Body ground
    		Input
    		G - Body ground
    		Power source
    		Always
    		11 to 14 V
    		-
    NOTICE:
    There are 1 motor and 2 sensors built into the steering lock actuator assembly.
    HINT:
    1. When taking measurements when the lock motor is stopped, it is not necessary to perform any operations.
    2. In order to take measurements when the lock motor is operating, perform either of the following operations:
      1. To unlock the steering, carry the key and turn the engine switch on (ACC) or on (IG) with the shift lever in P.
      2. To lock the steering, turn the engine switch off with the shift lever in P, and then open a door.



      Land Cruiser. Urj200, 202 Grj200 Vdj200.Steering Column.Power Tilt And Power Telescopic Steering Column System.Steering Lock System Terminals Of Ecu

    1. Waveform

      HINT:
      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.
      Item
      		Content
      Tester Connection
      		E26-3 (IGE) - E26-1 (GND)
      Tool Setting
      		2 V/DIV., 200 ms./DIV.
      Vehicle Condition
      		Steering lock motor not operating → Steering lock motor operating → Steering lock motor not operating
      Text in Illustration
      *a
      		Steering lock motor not operating
      *b
      		Steering lock motor operating
