  1. INITIAL CHECK

  1. CONSTANT CHECK

Pre-Crash Safety System -- Diagnosis System



INITIAL CHECK

  1. The initial check occurs when the ignition switch is off for more than 2 seconds, and then turned to ON. The initial check consists of the pre-crash safety system diagnostic check which lasts approximately 3 seconds.

  2. If a malfunction is detected during the initial check, the multi-information display displays "CHECK PCS SYSTEM" or "PCS TEMPORARILY NOT AVAILABLE".

    Warning Message
    		Detail
    		DTC
    		PCS Warning Indicator
    CHECK PCS SYSTEM
    		This message appears when the seat belt control ECU detects a system malfunction
    		DTC is output
    		ON
    PCS TEMPORARILY NOT AVAILABLE
    		This message appears when the seat belt control ECU is in the fail-safe mode
    		DTC is not output
    		Blinking

CONSTANT CHECK

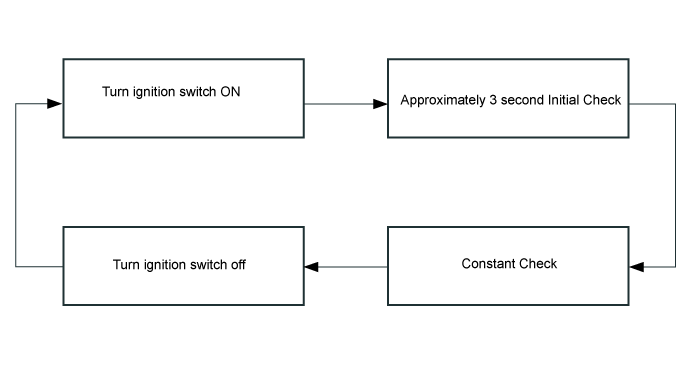

  1. After completing the initial check, the pre-crash safety system will become operational. Then, the diagnosis circuit will perform a constant check to check that there is not a system malfunction.



  2. If a malfunction is detected during the constant check, the multi-information display displays "CHECK PCS SYSTEM" or "PCS TEMPORARILY NOT AVAILABLE".
