Brake. Land Cruiser. Urj200, 202 Grj200 Vdj200
Brake (Rear). Land Cruiser. Urj200, 202 Grj200 Vdj200
Rear Brake -- Disassembly |
| 1. REMOVE REAR DISC BRAKE BLEEDER PLUG CAP |
| 2. REMOVE REAR DISC BRAKE BLEEDER PLUG |

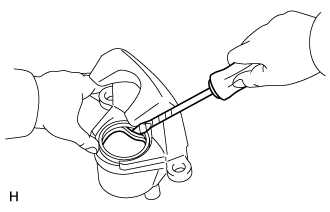

| 3. REMOVE CYLINDER BOOT |
Using a screwdriver, remove the cylinder boot from the cylinder.
- HINT:
- Tape the screwdriver tip before use.
 |
| 4. REMOVE REAR DISC BRAKE PISTON |
Place a piece of cloth or a similar object between the piston and cylinder.
 |
Use compressed air to remove the piston from the cylinder.
- CAUTION:
- Do not place your fingers in front of the piston when using compressed air.
| 5. REMOVE PISTON SEAL |
Using a screwdriver, remove the piston seal from the cylinder.
- NOTICE:
- Do not damage the inner cylinder and cylinder groove.
- HINT:
- Tape the screwdriver tip before use.
 |
