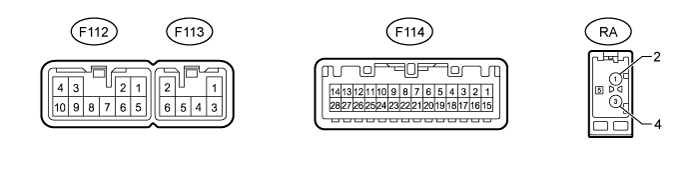

Terminal No. (Symbol)
| Wiring Color
| Terminal Description
| Condition
| Specified Condition
|
F112-1 (FR+) - F112-7 (GND)
| LA-W - W-B
| Sound signal (Front right)
| Audio system playing
| A waveform synchronized with sound signals is output
|
F112-2 (FL+) - F112-7 (GND)
| LA-B - W-B
| Sound signal (Front left)
| Audio system playing
| A waveform synchronized with sound signals is output
|
F112-3 (ACC1) - F112-7 (GND)
| BE - W-B
| ACC signal
| Ignition switch off
| Below 1 V
|
Ignition switch ACC
| 11 to 14 V
|
F112-4 (+B1) - F112-7 (GND)
| V - W-B
| Battery
| Always
| 11 to 14 V
|
F112-5 (FR-) - F112-7 (GND)
| LA-B - W-B
| Sound signal (Front right)
| Audio system playing
| A waveform synchronized with sound signals is output
|
F112-6 (FL-) - F112-7 (GND)
| LA-W - W-B
| Sound signal (Front left)
| Audio system playing
| A waveform synchronized with sound signals is output
|
F112-7 (GND) - Body ground
| W-B - Body ground
| Ground
| Always
| Below 1 Ω
|
F112-10 (ILL+) - F112-7 (GND)
| G - W-B
| Illumination signal
| Headlight dimmer switch assembly off
| Below 1 V
|
Headlight dimmer switch assembly tail or head position
| 11 to 14 V
|
F113-1 (RR+) - F112-7 (GND)
| LA-R - W-B
| Sound signal (Rear right)
| Audio system playing
| A waveform synchronized with sound signals is output
|
F113-2 (RL+) - F112-7 (GND)
| LA-B - W-B
| Sound signal (Rear left)
| Audio system playing
| A waveform synchronized with sound signals is output
|
F113-3 (RR-) - F112-7 (GND)
| LA-W - W-B
| Sound signal (Rear right)
| Audio system playing
| A waveform synchronized with sound signals is output
|
F113-6 (RL-) - F112-7 (GND)
| LA-L - W-B
| Sound signal (Rear left)
| Audio system playing
| A waveform synchronized with sound signals is output
|
F114-4 (MACC) - F114-6 (SNS2)
| R - L
| Telephone microphone assembly power supply
| Ignition switch off
| Below 1 V
|
Ignition switch ON
| 4 to 6 V
|
F114-5 (MIN+) - F114-6 (SNS2)
| W - L
| Telephone microphone assembly voice signal
| "Bluetooth" hands-free function on
| A waveform synchronized with sound signals is output
|
F114-6 (SNS2) - Body ground
| L - Body ground
| Telephone microphone assembly detected signal
| Always
| Below 1 Ω
|
F114-17 (SPD) - F112-7 (GND)
| L - W-B
| Speed signal from combination meter
| Ignition switch ON, drive wheels turned slowly
| Pulse generation
|
F114-18 (SGND) - Body ground
| Shielded - Body ground
| Shield ground
| Always
| Below 1 Ω
|
F114-19 (MIN-) - F114-6 (SNS2)
| B - L
| Telephone microphone assembly voice signal
| "Bluetooth" hands-free function on
| A waveform synchronized with sound signals is output
|
F114-21 (SW1) - F112-7 (GND)
| L - W-B
| Steering pad switch signal
| No switch pushed
| 2.8 to 3.57 V
|
Seek+ switch pushed
| 0 to 0.6 V
|
Seek- switch pushed
| 0.6 to 1.3 V
|
Volume+ switch pushed
| 1.3 to 2.1 V
|
Volume- switch pushed
| 2.1 to 2.8 V
|
F114-22 (SW2) - F112-7 (GND)
| P - W-B
| Steering pad switch signal
| No switch pushed
| 2.8 to 3.59 V
|
MODE switch pushed
| 0 to 0.6 V
|
On hook switch pushed
| 0.6 to 1.3 V
|
Off hook switch pushed
| 1.3 to 2.1 V
|
F114-23 (SWG) - F112-7 (GND)
| BR - W-B
| Steering pad switch ground
| Always
| Below 1 Ω
|
RA-3 (MAIN)
| -
| -
| -
| -
|
RA-4 (GND)
| -
| Ground
| -
| -
|
RA-5 (ANT+) - F112-7 (GND)
| # - W-B
| Power source of antenna
| Ignition switch ACC, radio switch on and AM or FM selected
| 11 to 14 V
|
